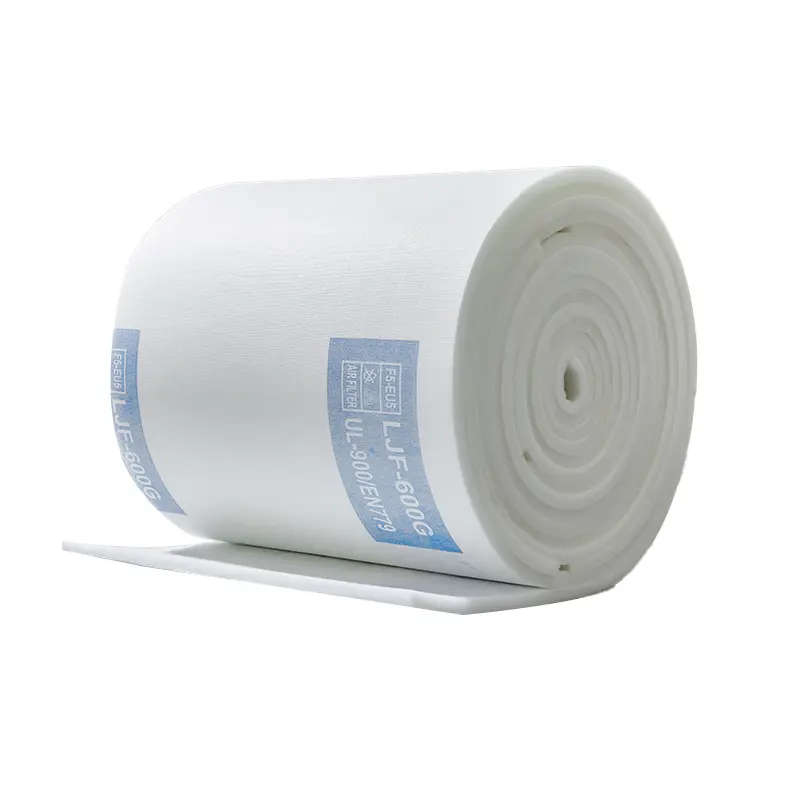

China 600G Spray Booth Ceiling Filter Supplier, Exporter

Ceiling filters are designed for high performance air filtration in a variety of applications, especially painting systems and spray booths. The filters use advanced break-resistant organic synthetic fibers, made using a high-powered fusion process, to ensure effective dust capture and air quality management.

Send Inquiry

Product Description

Main Features

1. Material composition Made of break-resistant organic synthetic fibers to ensure durability and elasticity. Fully impregnated media treated with adhesive prevents the passage of dust particles.

2. Progressive Structure The filter adopts a progressive structure, where the fiber density increases towards the clean air side, thus improving the filtration efficiency.

3. Customized options Customers can choose from a variety of material properties including tack, surface viscosity and dry processing to meet specific needs.

4. Compliance standards Complies with European DIN53438-F1 and American UL900-2 standards to ensure safety and performance.

5. High filtration efficiency Through glue treatment, the capture rate of dust particles larger than 10μm reaches 100%. The filter fibers are encrypted step by step to achieve layered filtration.

6. Durability and lifespan High dust holding capacity extends service life and reduces frequent replacement. Stable structure and uniform air permeability ensure consistent airflow.

7. Low resistance and elasticity Characterized by low initial resistance, improving energy efficiency. High elasticity and wrinkle resistance increase operational reliability.

8. Silicone Free The filter is silicone-free, suitable for applications where silicone contamination is a major concern.

Application

Mainly used in final filtration systems of painting systems and spray booths.

Effective deep filtration for ventilation systems and equipment, ensuring clean air and optimal performance. This ceiling filter is an essential component in maintaining air quality in industrial environments, providing reliable filtration and contributing to a safer work environment.

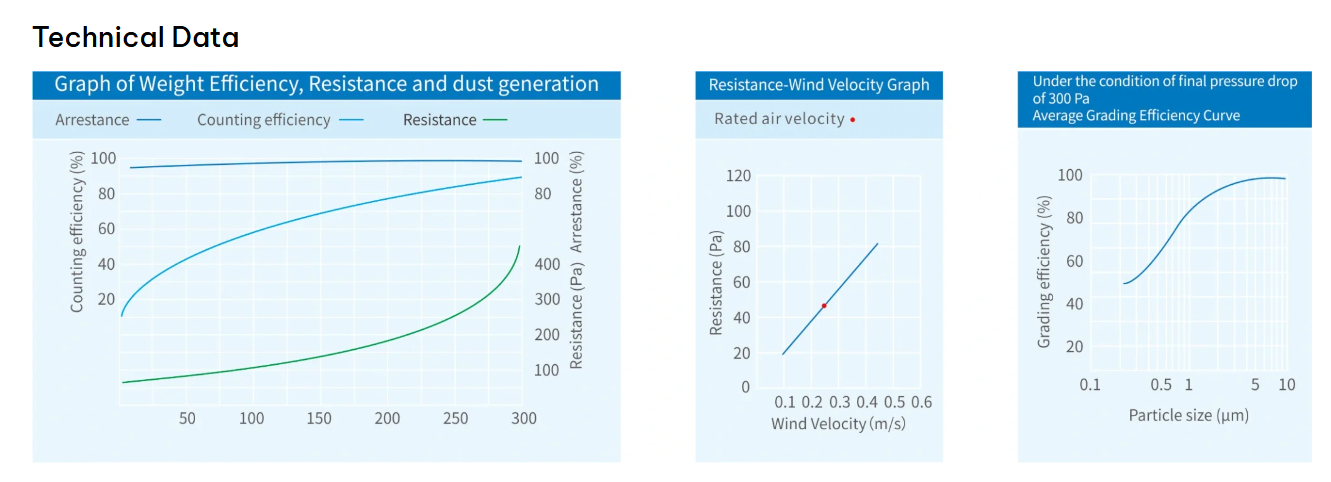

Specification

Model	Filtration Class	Average Capture Rate	Thickness (mm)	Weight (g/㎡)	Dust Holding Capacity (g/㎡)	Rated Air Velocity (m/s)	I.N.P (Pa)	F.N.P (Pa)	Scrim/Glue
LJF-600G	F5 M5	99%	22±2	600	450	0.25	45	450	Full glue
LJF-560G	F5 M5	99%	22±2	500	400	0.25	40	400	Full glue
LJF-460G	F5 M5	97%	22±2	460	370	0.25	35	400	Surface glue
LJF-400G	F5 M5	90%	22±2	260	350	0.25	30	400	without glue
Roll sizes standard: 121m \| 1.621m \| 2*21m
Note: other specifications can be customized according to requirements.

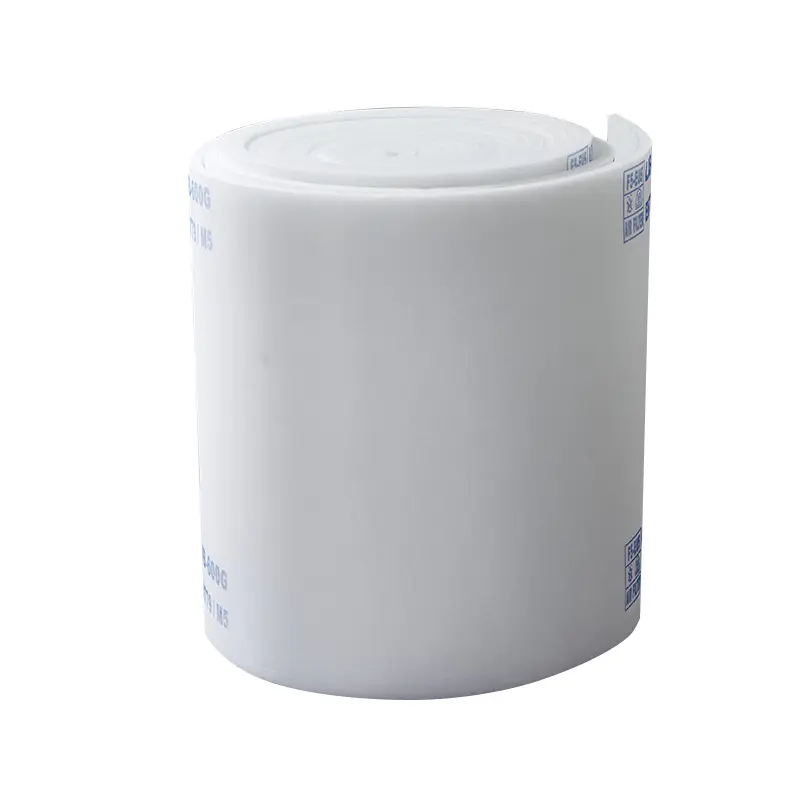

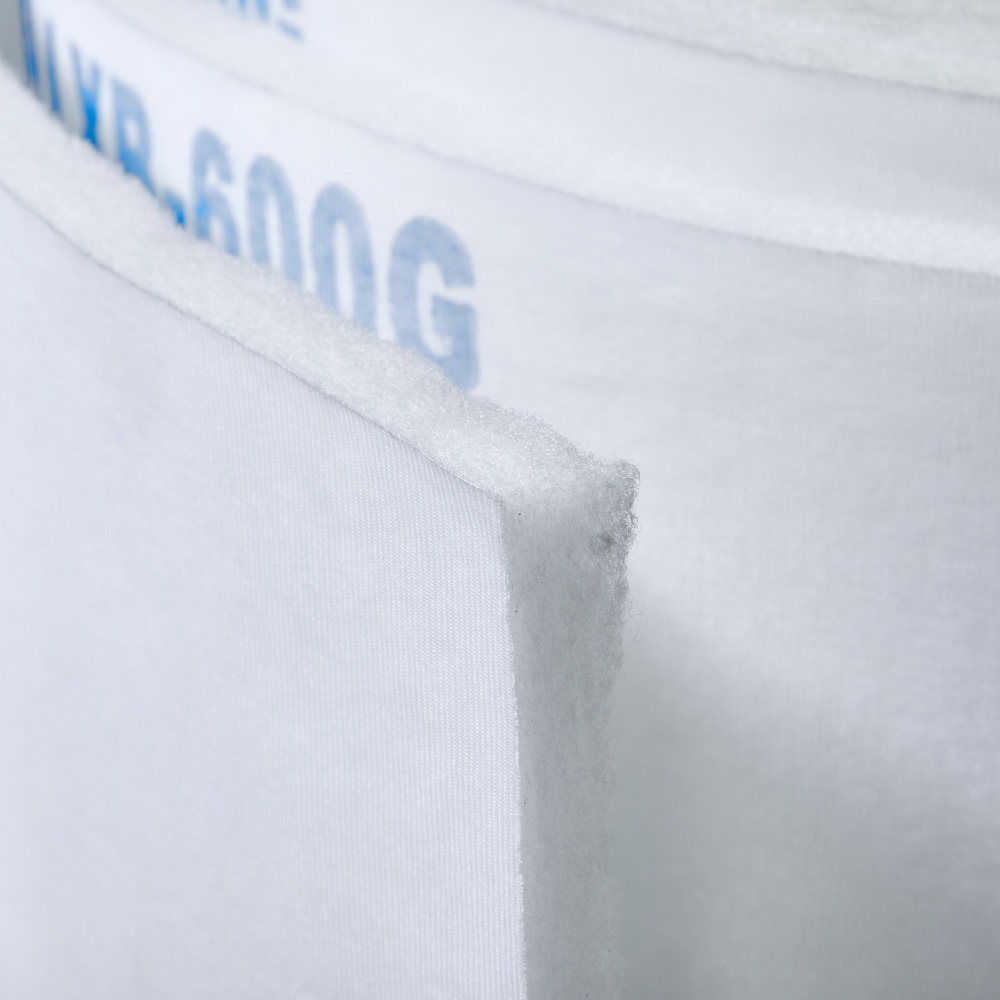

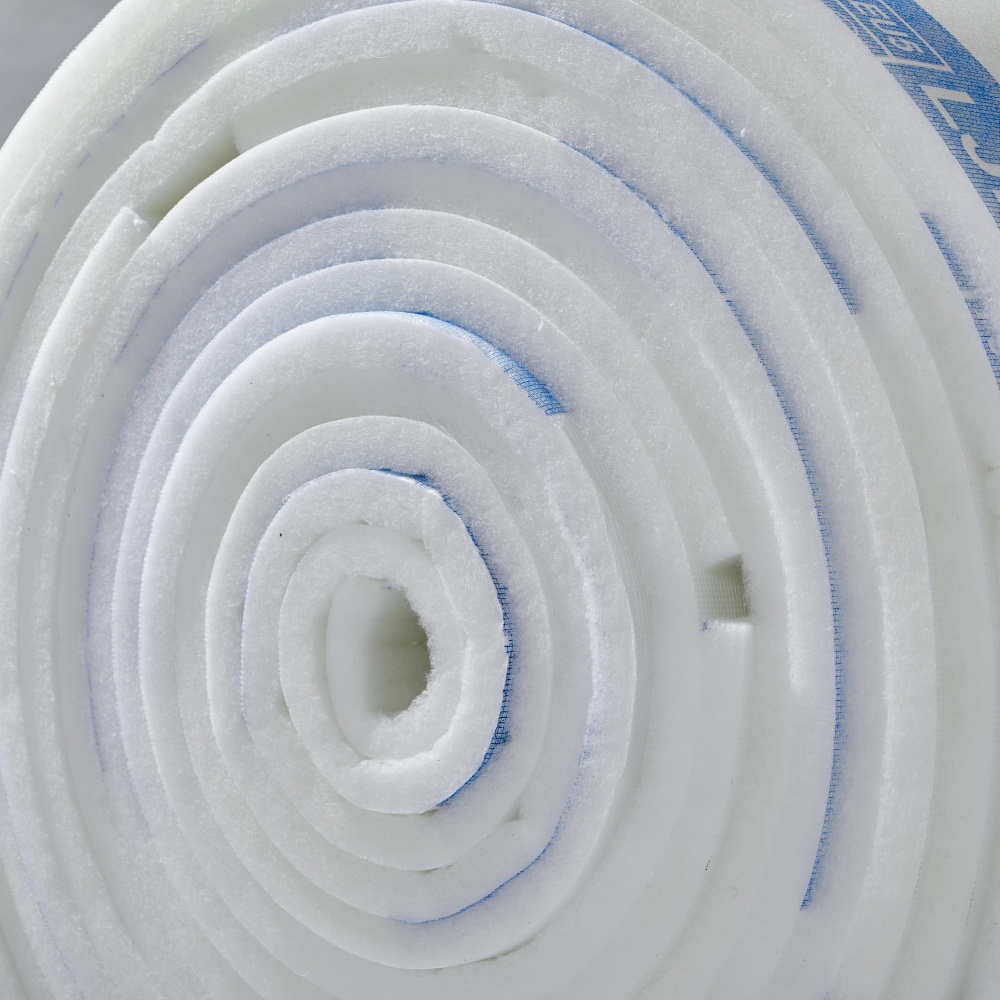

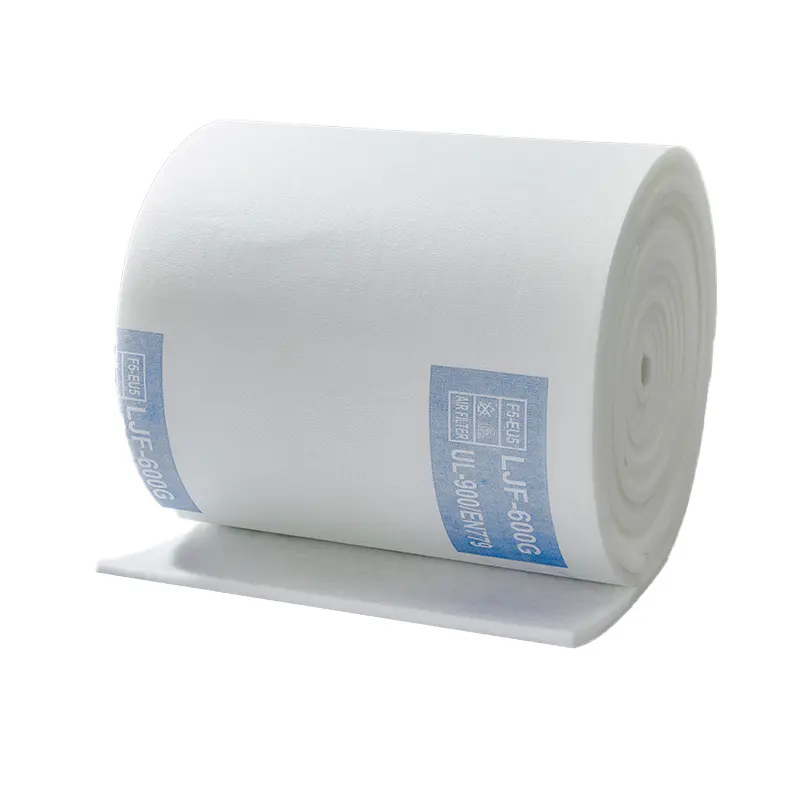

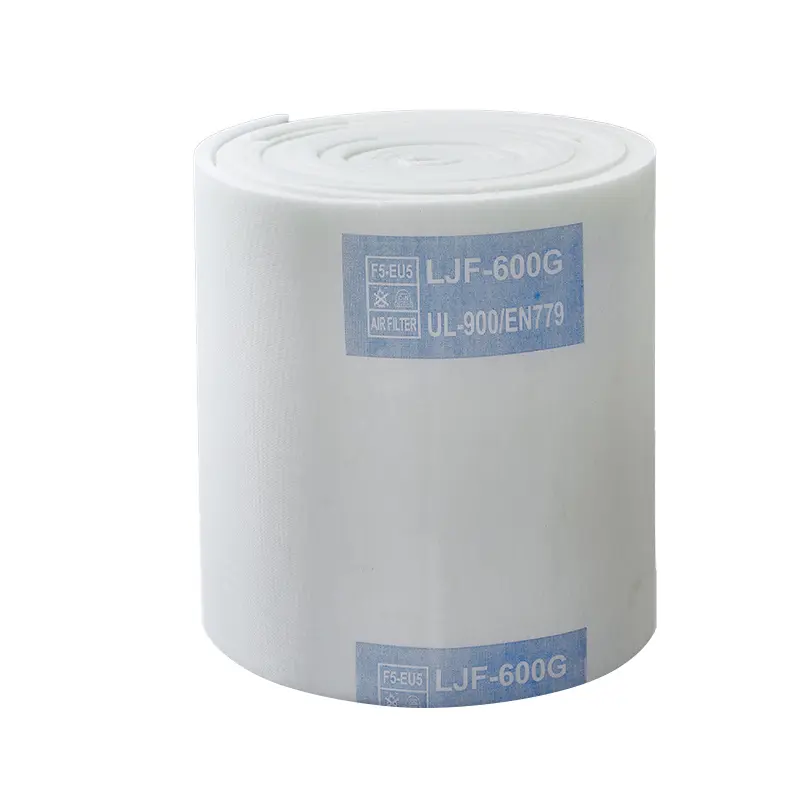

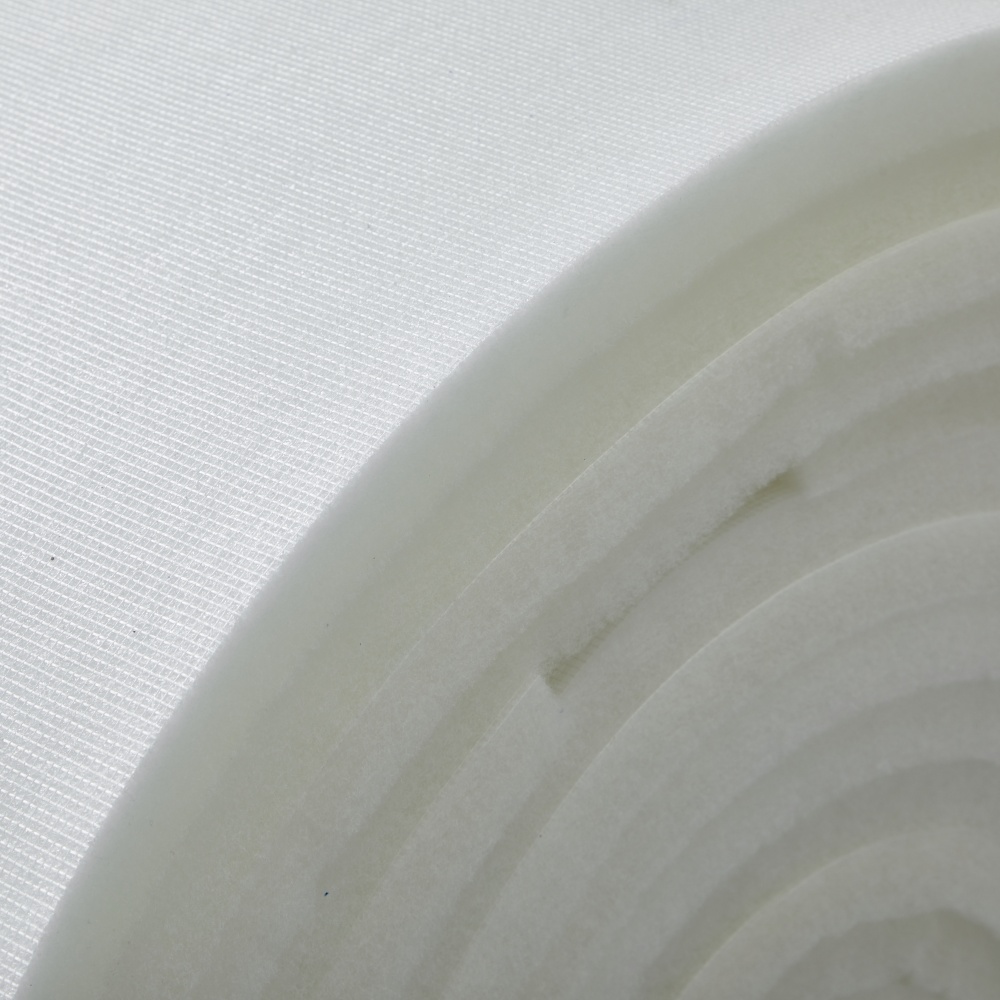

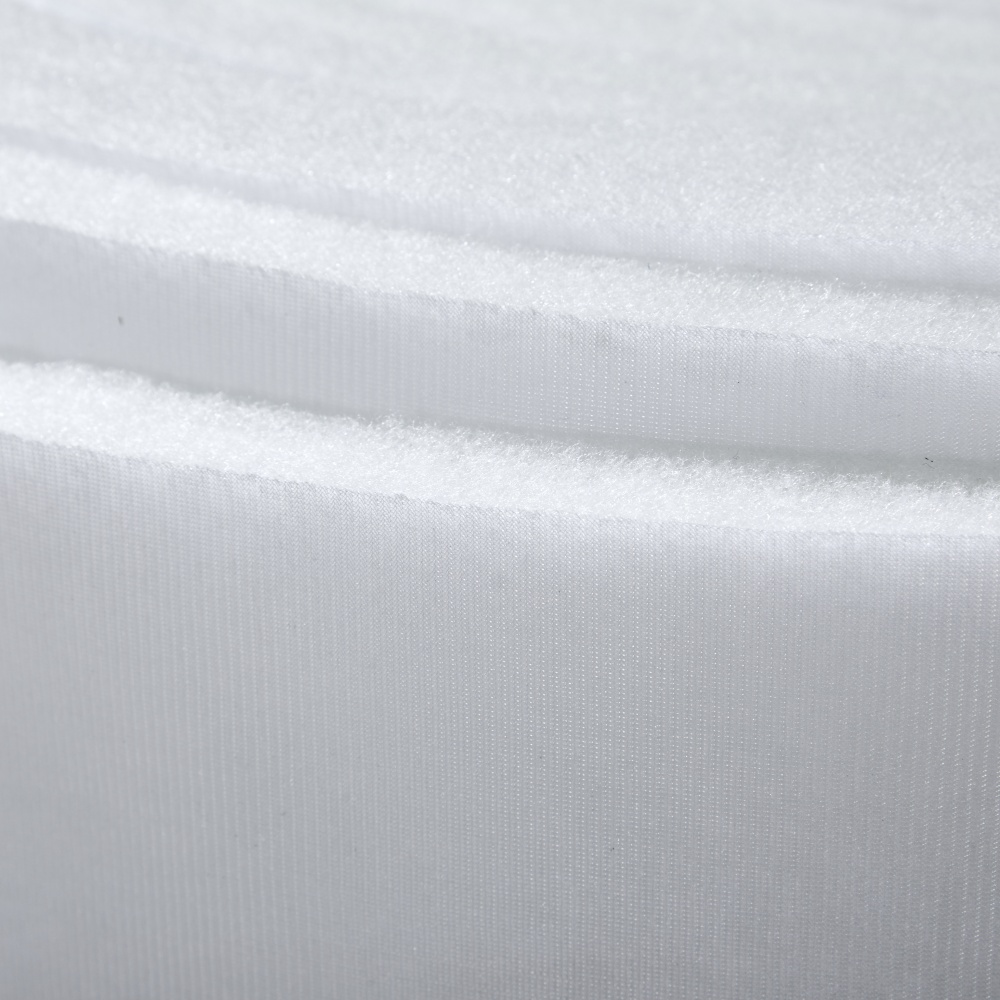

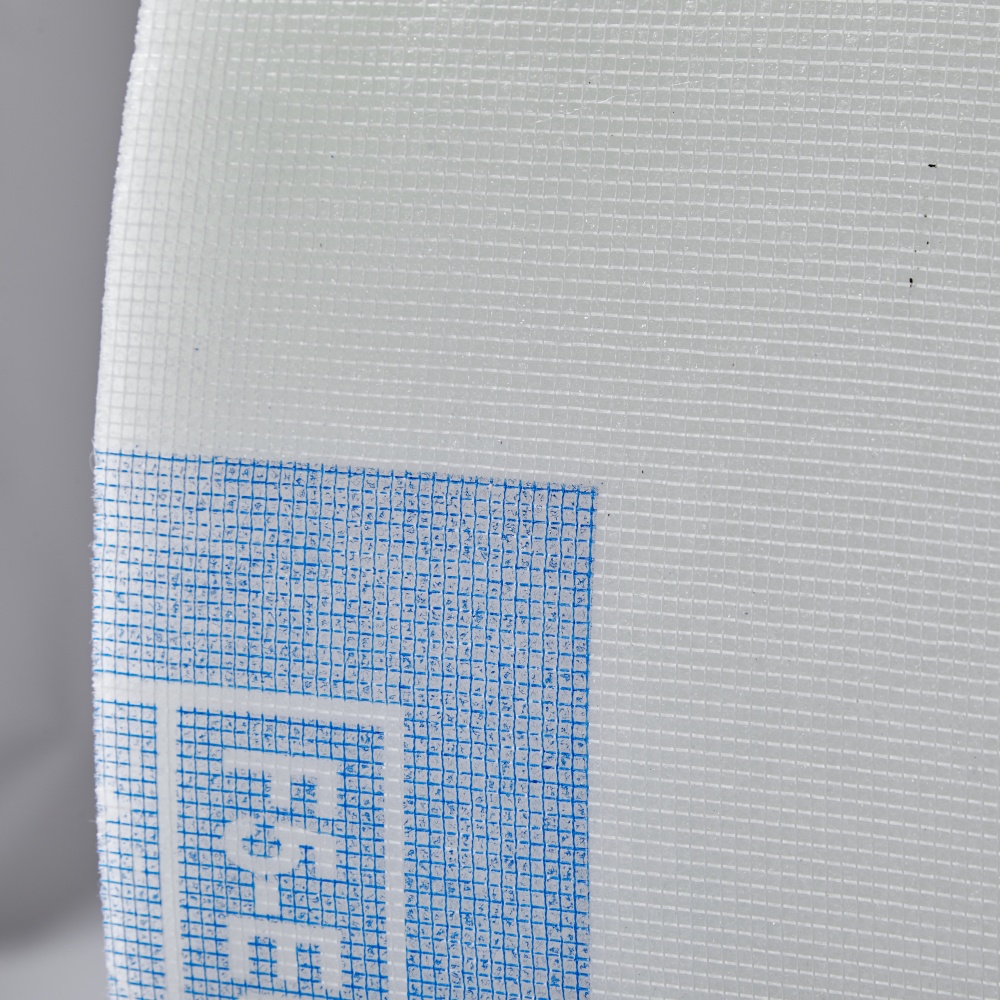

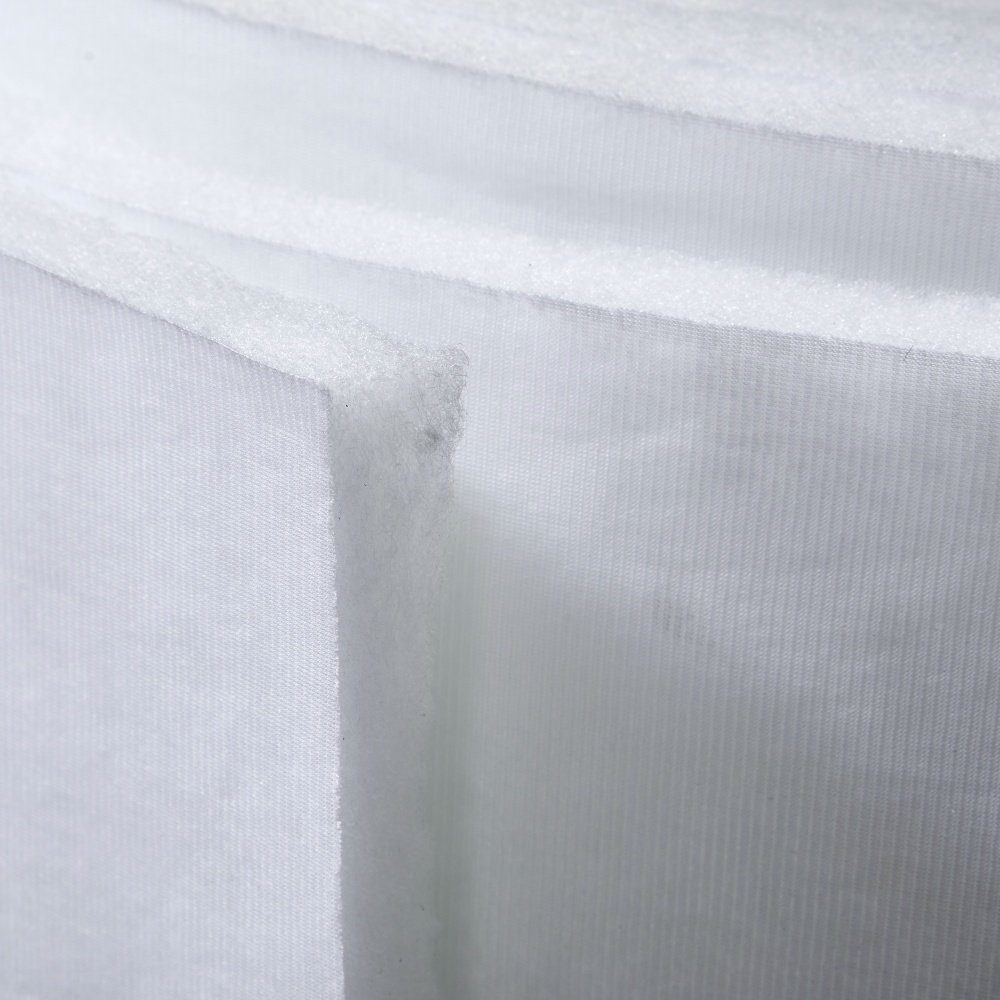

Product Display

Frequently Asked Questions

What materials are used in the construction of these ceiling filters?

The filters are made of break-resistant organic synthetic fibers. These fibers are fully impregnated with an adhesive treatment to ensure maximum dust retention and durability.

What is a progressive structure in air filtration?

A progressive structure means the density of the filter fibers increases gradually towards the clean air side. This design allows for layered filtration and higher efficiency in capturing particles.

Are these filters compliant with international safety standards?

Yes, our filters comply with European DIN53438-F1 and American UL900-2 standards, ensuring they meet rigorous safety and performance criteria.

Can the filter catch very small dust particles?

Yes, with the specialized glue treatment, the capture rate for dust particles larger than 10μm reaches 100%.

Is this product safe for silicone-sensitive environments?

Absolutely. The filters are completely silicone-free, making them ideal for automotive spray booths and other painting applications where silicone contamination must be avoided.

What are the primary applications for this ceiling filter?

They are primarily designed for final filtration in painting systems, spray booths, and general ventilation equipment to maintain high air quality in industrial workplaces.
