Discount Paint Arrestor Filter Quotes, Product

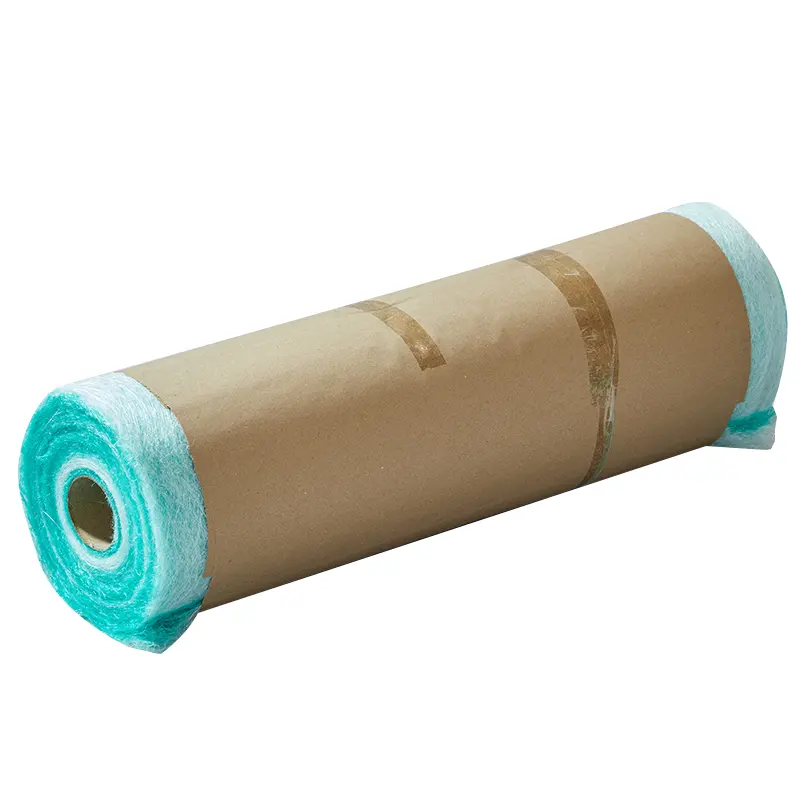

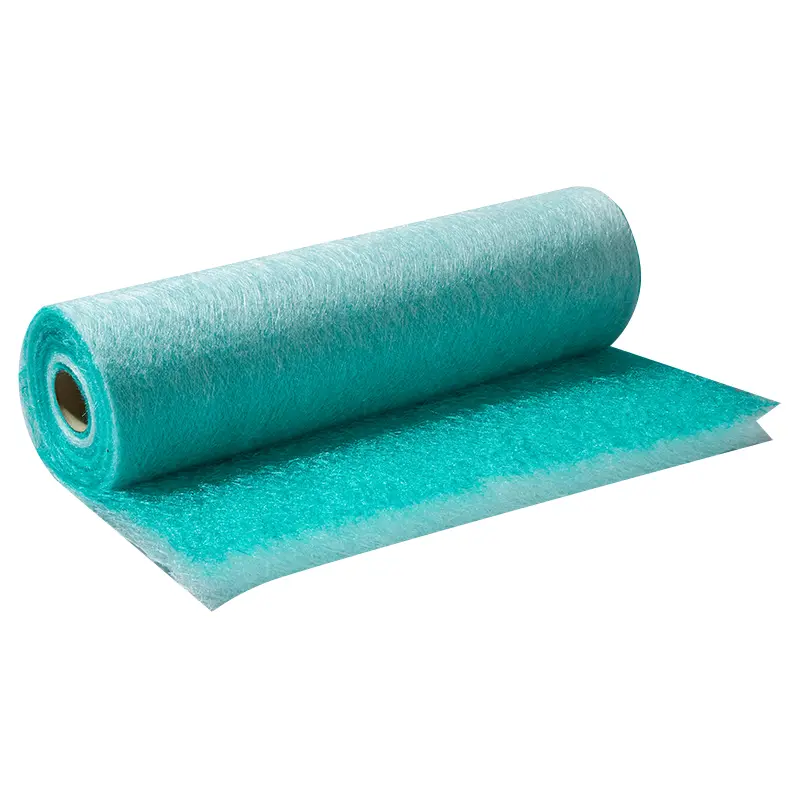

The Paint Arrestor Filter also known as a Paint Stop or Floor Filter, is a high-performance filtration solution engineered specifically for capturing paint overspray in industrial spray booths. Constructed from non-woven fiberglass, its progressive density structure delivers high efficiency with minimal air resistance, ensuring optimal performance and a cleaner working environment.

Send Inquiry

Product Description

Main Features

High-Capacity Overspray Capture The progressive, dense structure is designed to effectively trap and retain paint particulates from overspray.

Optimized Airflow Features large air permeability, ensuring a low initial pressure drop for efficient ventilation and energy savings.

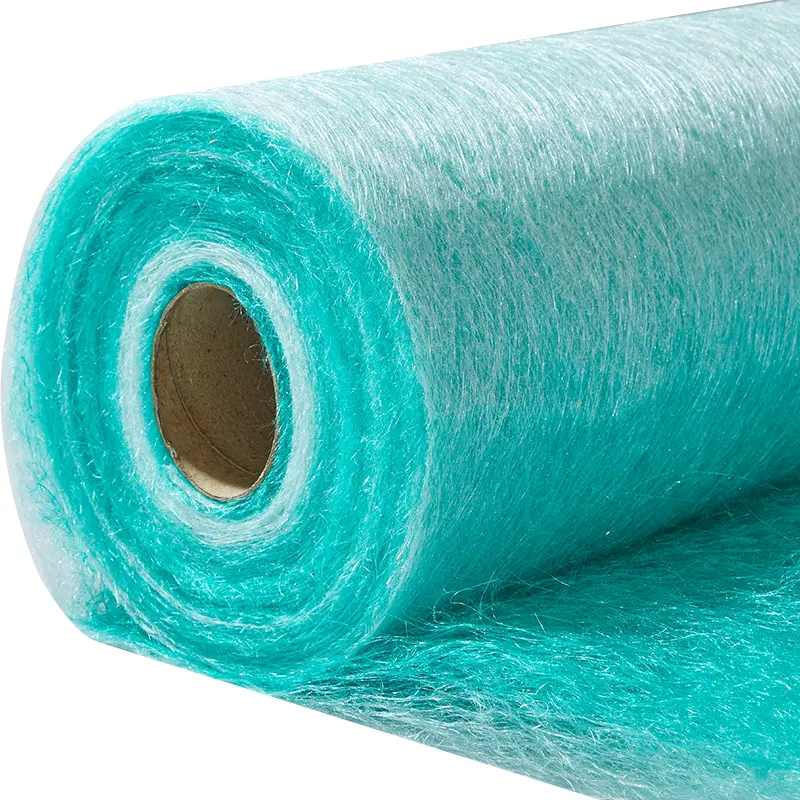

Exceptional Durability Manufactured from long, interwoven fiberglass fibers, exhibiting high burst resistance and structural integrity.

Superior Dust Holding The dense, graduated construction and large surface area contribute to an extended service life and reduced change-out frequency.

Universal Compatibility Designed to fit all standard filter frames and housings commonly used in industrial spray booths.

Stable Construction The fluffy inlet side provides depth-loading capacity, while resilient material prevents compression damage.

Applications

Paint Spray Booths in the Automotive Industry
Industrial Spray Booths for Manufacturing and Refinishing
Power Generation Facilities (for air intake or exhaust scrubbing)
General Industrial applications requiring overspray containment

Specification

Model	Filtration Class	Thickness (mm)	Weight (g/㎡)	Dust Holding (g/㎡)	Rated Velocity (m/s)	CMH	I.N.P (Pa)	F.N.P (Pa)	Capture Rate
LY-PA-50	G3	50	240	≥3500	2	7200	20	200	85%
LY-PA-60	G3	60	260	≥3600	2	7200	23	200	90%
LY-PA-80	G4	80	300	≥4000	1.75	6300	28	200	95%
LY-PA-100	G4	100	350	≥5000	1.5	4500	40	200	98%
Standard Roll Sizes: 0.820m \| 120m \| 2*20m
Note: Other specifications can be customized according to requirements.

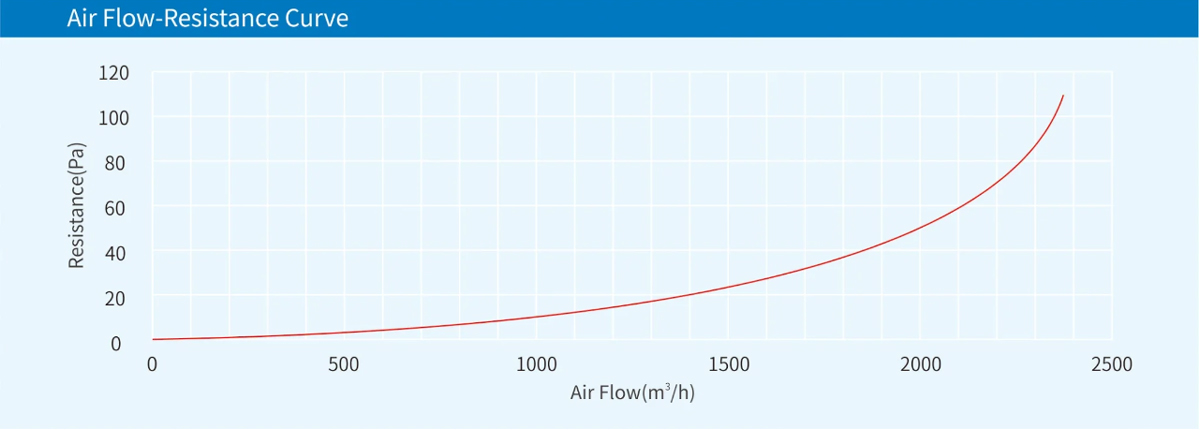

Technical Data

What is a Paint Arrestor?

Paint Arrestor is a vital component in spray booth ventilation systems. Its primary function is to protect the booth's exhaust system and the external environment by capturing liquid and solid particulates from paint overspray. The unique non-woven fiberglass construction acts as a depth filter, allowing air to pass through with minimal resistance while effectively arresting paint mist, thereby maintaining air quality and operational efficiency.

FAQ

How does a paint arrestor improve spray booth efficiency?

By providing high-capacity capture with low air resistance, it ensures consistent airflow and protects the exhaust fans from buildup, reducing maintenance needs and energy consumption.

What is the difference between G3 and G4 filtration classes in these filters?

G4 filters (like LY-PA-80 and 100) offer a higher capture rate (up to 98%) compared to G3 filters (85-90%), making them suitable for stricter environmental or finishing requirements.

Can the size of the paint arrestor be customized?

Yes, while we offer standard roll sizes (0.8m, 1m, and 2m widths), other specific dimensions can be customized to fit your unique filtration equipment.

Is the material resistant to compression?

Yes, the resilient fiberglass construction is designed to prevent compression damage during shipping and handling, ensuring it maintains its depth-loading capacity when installed.

How often should a paint arrestor be changed?

The frequency depends on the dust holding capacity and usage. Our filters are designed with a graduated density to maximize service life, typically indicated by a specific increase in pressure drop.

Are these filters compatible with automotive paint booths?

Absolutely. They are specifically designed for high-demand environments including automotive manufacturing, refinishing, and general industrial spray applications.
