Wholesale Spray Booth Ceiling Filter Media LJF-600G Factories, Pricelist

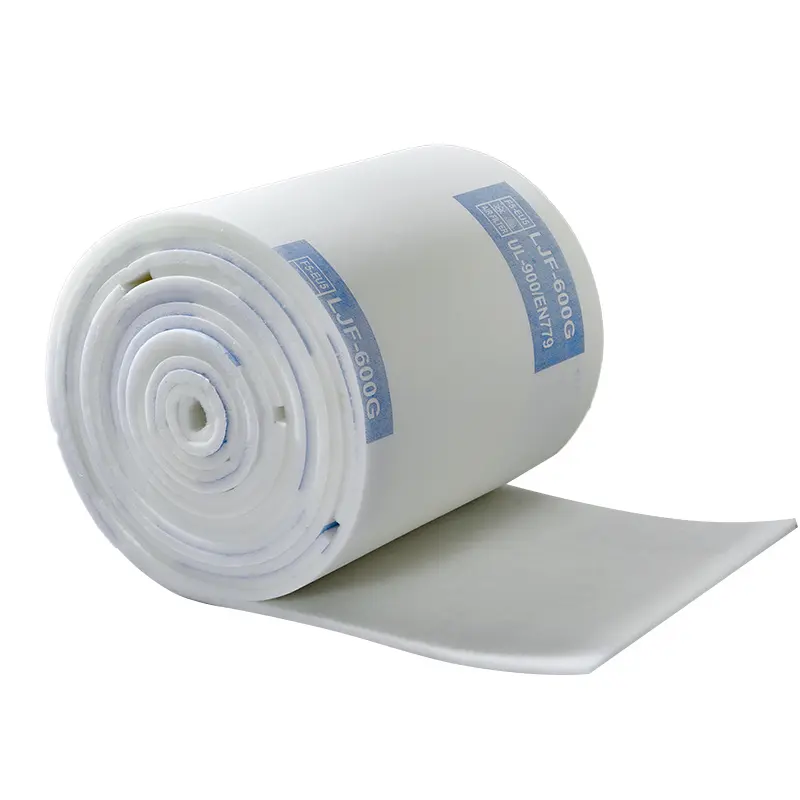

LJF-600G Spray Booth Ceiling Filter Media Engineered for industrial environments requiring superior particulate control, the LJF-600G represents an advanced filtration solution optimized for painting operations and spray booth installations. This innovative system employs next-generation polymer-based filtration media processed through thermal bonding technology to achieve exceptional particle retention and operational longevity.

Send Inquiry

Product Description

Core Construction

Shatterproof synthetic fiber matrix with elastic recovery properties

Full-depth adhesive saturation for particle immobilization

Gradient density design increasing from intake to output surfaces

Performance Attributes

1. Multi-stage Filtration Mechanism: Progressive fiber layering creates sequential filtration stages, enhancing contaminant capture efficiency while maintaining airflow consistency.

2. Customizable Media Configuration: Adjustable surface adhesion levels (tack/dry variants) for application-specific requirements.

3. Certification Compliance: Meets international safety protocols (EU DIN53438-F1 & NA UL900-2 certified).

4. Precision Filtration: Verified 100% retention efficiency for particulates >10μm; Multi-layered fiber alignment enables depth filtration.

5. Operational Economy: High dust-load capacity minimizes maintenance cycles; Stable pleat geometry ensures consistent pressure differential.

6. Energy-efficient Design: Optimized initial airflow resistance (≤30% reduction vs conventional filters); Anti-collapse structure maintains integrity under variable static pressure.

7. Material Safety: Silicone-free composition prevents surface contamination risks.

Industrial Applications

Primarily implemented in:

Automotive/industrial paint finishing systems
High-volume spray enclosure ventilation
Precision manufacturing air management
Process ventilation terminal filtration

This engineered filtration solution effectively maintains ISO Class 5-7 air cleanliness standards while demonstrating 40% extended service intervals compared to standard panel filters. The non-particulating media structure prevents secondary contamination, making it particularly suitable for critical surface coating applications where airborne defects must be eliminated.

Technical Specification

Model	Filtration Class	Avg. Capture Rate	Thickness (mm)	Weight (g/㎡)	Dust Capacity (g/㎡)	Rated Velocity (m/s)	Initial Resistance (Pa)	Final Resistance (Pa)	Scrim/Glue
LJF-600G	F5 M5	99%	22±2	600	450	0.25	45	450	Full glue
LJF-560G	F5 M5	99%	22±2	500	400	0.25	40	400	Full glue
LJF-460G	F5 M5	97%	22±2	460	370	0.25	35	400	Surface glue
LJF-400G	F5 M5	90%	22±2	260	350	0.25	30	400	Without glue
Standard Roll Sizes: 121m \| 1.621m \| 2*21m
Note: Other specifications can be customized according to requirements.

Technical Data

Frequently Asked Questions

What makes the construction of these filters "shatterproof"?

The filters utilize a synthetic fiber matrix with elastic recovery properties, ensuring the media maintains its structural integrity without breaking or shedding fibers even under variable airflow pressure.

Are these filters compliant with international fire and safety standards?

Yes, they are fully certified to meet EU DIN53438-F1 and North American UL900-2 safety protocols, making them suitable for high-standard industrial environments.

Can these filters be used in automotive paint booths?

Absolutely. Their silicone-free composition and 100% retention efficiency for particles over 10μm make them ideal for critical surface coating and paint finishing systems.

How does the "gradient density" design improve performance?

The density of the fibers increases from the intake side to the output side, which allows for depth filtration. This captures larger particles early and smaller ones deeper, significantly increasing dust-holding capacity.

Do these filters help in reducing energy costs?

Yes, the optimized design provides up to a 30% reduction in initial airflow resistance compared to conventional filters, meaning fans and ventilation systems require less power to move air.

Can I get a custom size for my specific ventilation system?

While we offer standard roll sizes (1m, 1.6m, and 2m widths by 21m length), other specifications can be customized to meet your specific application requirements.
