Cheap Fiberglass Paint Stop Filter Roll Supplier, Factory

1 / 5

Cheap Fiberglass Paint Stop Filter Roll Supplier, Factory

1.Made of long fiberglass in non-woven way, large ventilation quantity, small resistance, good efficiency of the dust arrestance for the over-spray.
2.It is applied to the superficial spray coating high quality painting-spray filtration, high dust catching, specially , PA-50/60/PA-100 is suitable for using heat recovery system
3.High strength fiberglass increasing structure; the windward side is green ,the leeward side is white.
4.The low compression performance maintains its outlook,which is completely useful for the filtration fibre to keep the oil mist and the dust.
5.Nonflammability, heat resistance 170â„ƒ.
6.The compression packing may save the fare and the storage space in the transportation. After decompression, it will regain its original condition.
7.Outer frame may choose the paper frame , the galvanization iron frame, or aluminium alloy frame.

Send Inquiry

Product Description

Application

It is mainly used in the discharge filtration of paint mist or industrial oil mist from painting systems or pre-filtration of general ventilation.

Key Features

✓ Step by step encryption of filter fibers and stratified filtration.

✓ High dust holding capacity and long service life.

✓ Air outlet surface with film treatment, stable structure, not easy to drop chips.

✓ Strong absorptive power for paint mist and oil mist.

✓ Excellent moisture-proof, elasticity, acid and alkali resistance, and high-temperature resistance.

Technical Parameters

Main Material	Fiberglass fiber
Filtration Class	G2, G3, G4 (EN779) / EU3 (EUROVENT) / MERV 5-6
Final Resistance	200Pa (suggestion)
Average Weight Efficiency	PA-50/60 ≥ 90%, PA-75 ≥ 95%, PA-100 ≥ 98%
Flammability Rating	F1 (DIN 53438) / B1 (GBT 17591-2006)
Filter Object	Paint mist, oil mist, dust particles
Color Options	Green-white / Blue-white / Yellow-white / Pink-white
Temperature Resistance	200°C
Short Peak Temperature	250°C
Moisture Resistance	100% Relative Humidity

Professional Filtration Solutions

We are committed to providing high-quality filtration solutions that meet industrial needs. Fiberglass Anti-Paint Filter Rolls are a testament to innovation and excellence in air filtration technology, designed to help you achieve superior air quality and outstanding paint results in paint booth operations.

Product Display

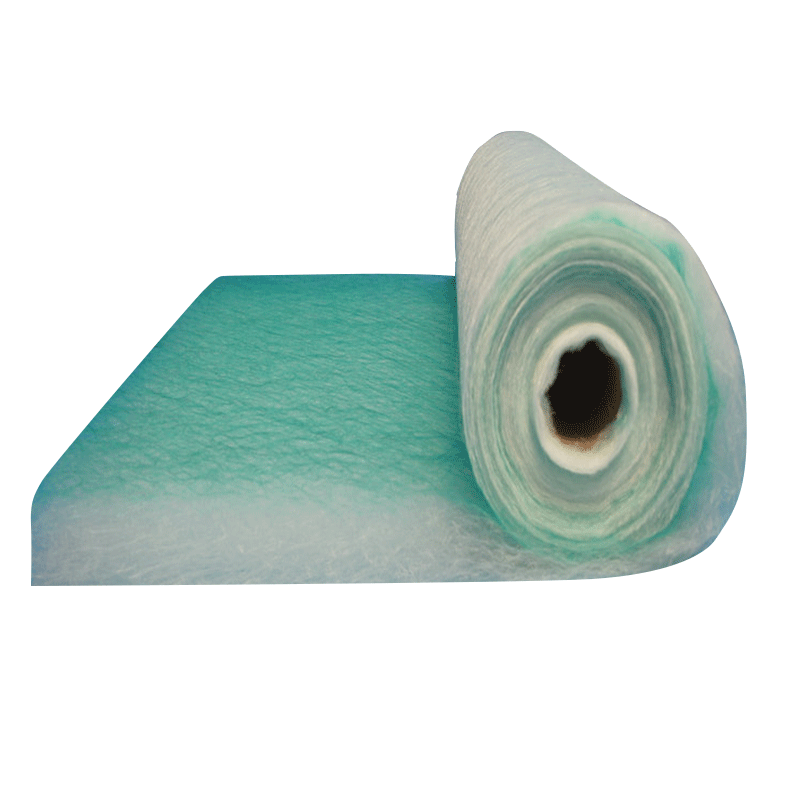

Fiberglass Paint Stop Filter Roll Detail

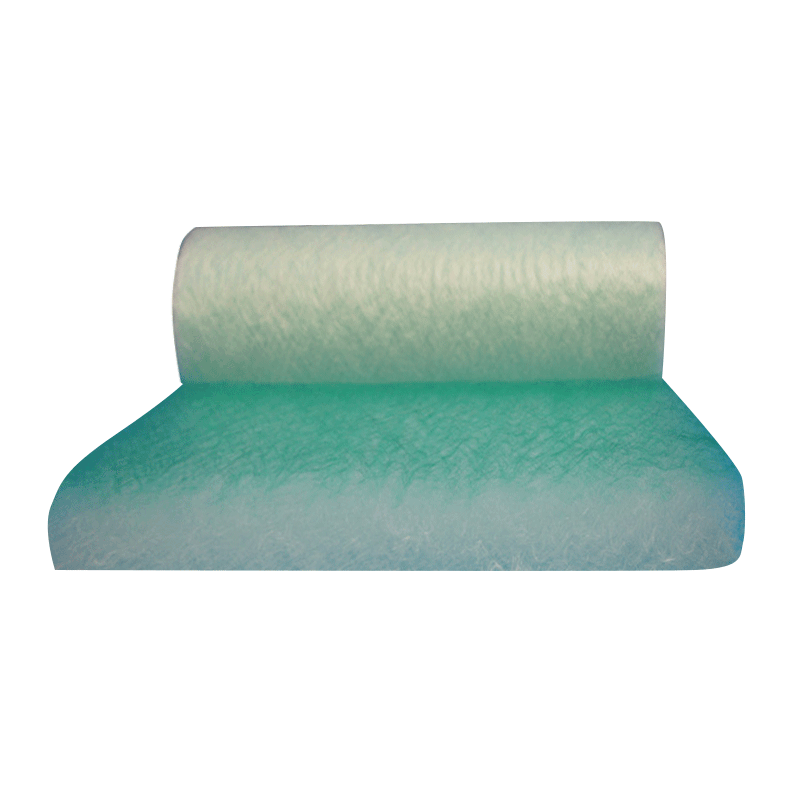

Fiberglass Paint Stop Filter Roll Texture

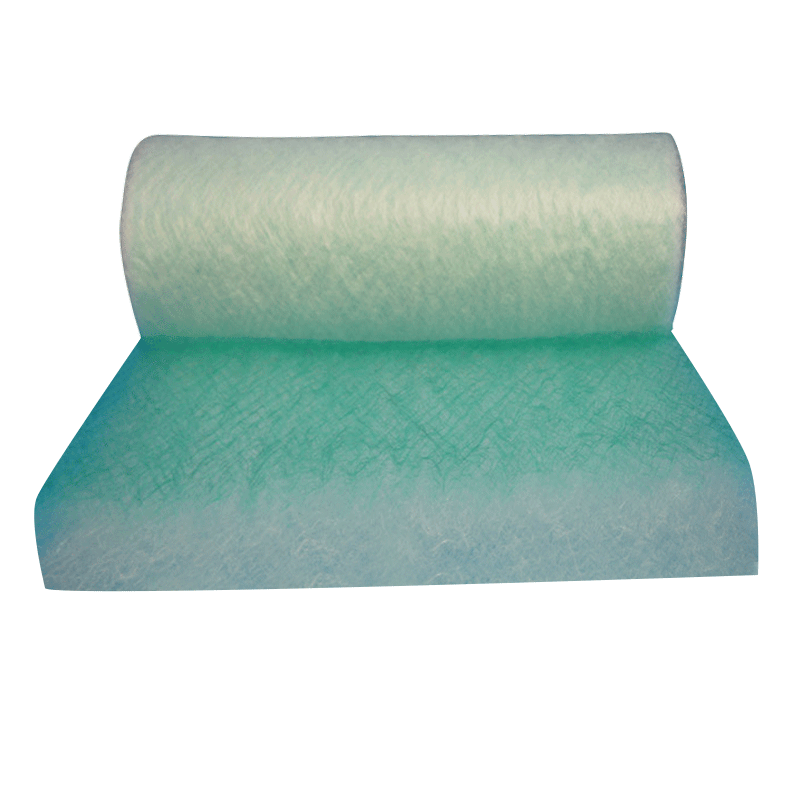

Fiberglass Paint Stop Filter Roll Application

Frequently Asked Questions

What is the primary function of the Fiberglass Paint Stop Filter?

It is specifically designed to capture paint mist and industrial oil mist in painting systems, protecting exhaust fans and ductwork while improving overall air quality.

How does the "step-by-step encryption" benefit the process?

The density of the glass fibers increases progressively toward the air outlet side. This structure ensures that larger particles are trapped first and finer particles later, maximizing dust-holding capacity and lifespan.

What temperature range can this filter withstand?

The filter is highly heat-resistant, maintaining stable performance at continuous temperatures up to 200°C, with short peak resistance reaching 250°C.

Is this filter suitable for high-humidity environments?

Yes, it features 100% moisture resistance (relative humidity), making it ideal for various industrial environments where humidity levels may fluctuate.

What filtration standards does this product meet?

Our filters comply with international standards including EN779 (G2, G3, G4 classes), EUROVENT (EU3), and MERV 5-6 specifications.

Does the filter fiber shed easily during operation?

No, the air outlet surface undergoes a special film treatment that stabilizes the structure and prevents fiber shedding or chip dropping.
