High-Quality Activated carbon filter media Manufacturers, Product

Â Activated carbon filter media is specifically designed to effectively remove malodorous substances and harmful gases from the air, making it an essential component of HVAC systems in a variety of applications. This filter media is particularly effective in environments where air quality is a concern, such as commercial buildings, industrial facilities, and residential environments.

Send Inquiry

Product Description

Main Features

High Quality Catalytic Powdered Activated Carbon: The filter media is made of premium activated carbon, known for its excellent adsorption properties to capture a wide range of airborne pollutants.

Multiple Applications

This activated carbon filter media can be produced in various shapes and sizes, suitable for different types of air conditioner purifiers, including panel filters, bag filters, etc.

Effective Odor Removal

Specially formulated to eliminate unpleasant odors and harmful gases, including:

Benzene
Methanol
Ammonia
Carbon dioxide
Nitrogen dioxide (NO₂)
Sulfur dioxide (SO₂)

Improves Indoor Air Quality: By removing these harmful substances, activated carbon filter media helps create a healthier indoor environment and improves overall air quality.

Customizable Options: Available in a variety of configurations to meet specific application requirements, ensuring optimal performance in different HVAC systems.

Activated carbon filter media is an effective solution to air quality issues, providing reliable filtration of a wide range of harmful substances and odors. Its versatility and high-quality construction make it an ideal choice for enhancing the performance of HVAC systems in a variety of environments.

Specification

Model	LY-HT-3	LY-HT-5	LY-HT-10	LY-HT-15	LY-HT-20
Material	Polyester + Carbon
Thickness	5mm	10mm	15mm	20mm	22mm
Initial resistance	20pa	30pa	35pa	35pa	40pa
Final resistance	125pa	200pa	250pa	250pa	250pa
Avg.arrestance (EN779)	68%	83%	86%	89%	92%
Temp. resistance	100°C
Dust holding (Tested final)	380g/m²	450g/m²	500g/m²	550g/m²	580g/m²
Filtration class	G2	G3	G3	G4	G4
Weight	120	150	180	220	250
Normal size	120m / 220m
Note: Other specifications may be subject to customisation in accordance with customer requirements.

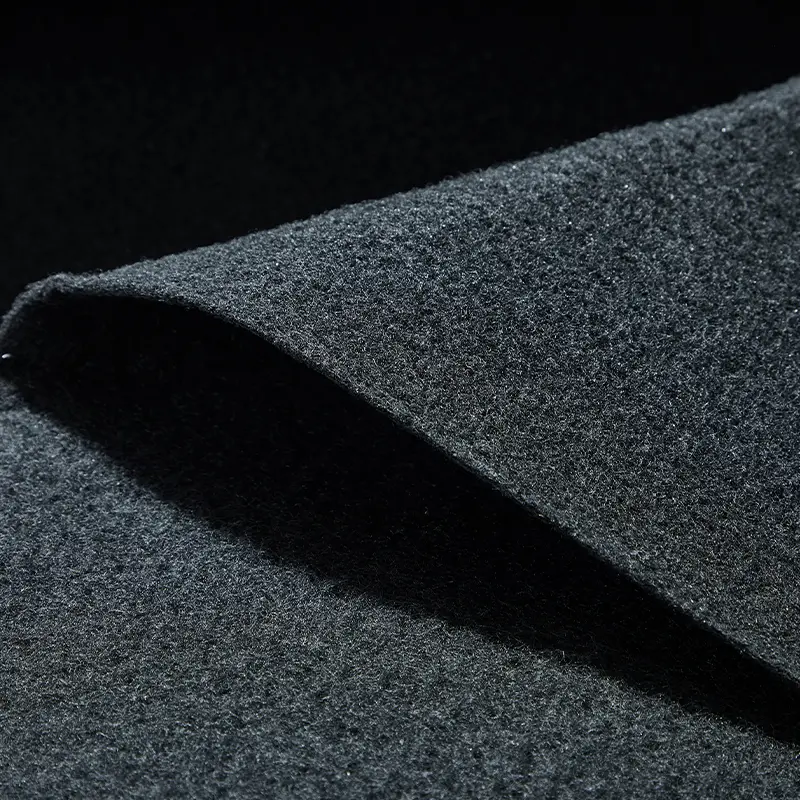

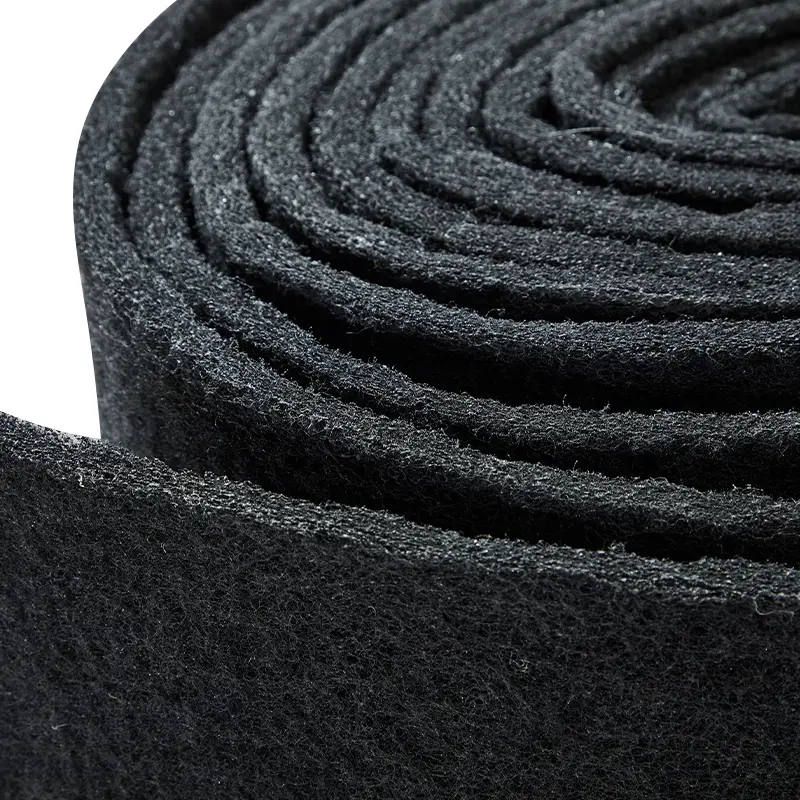

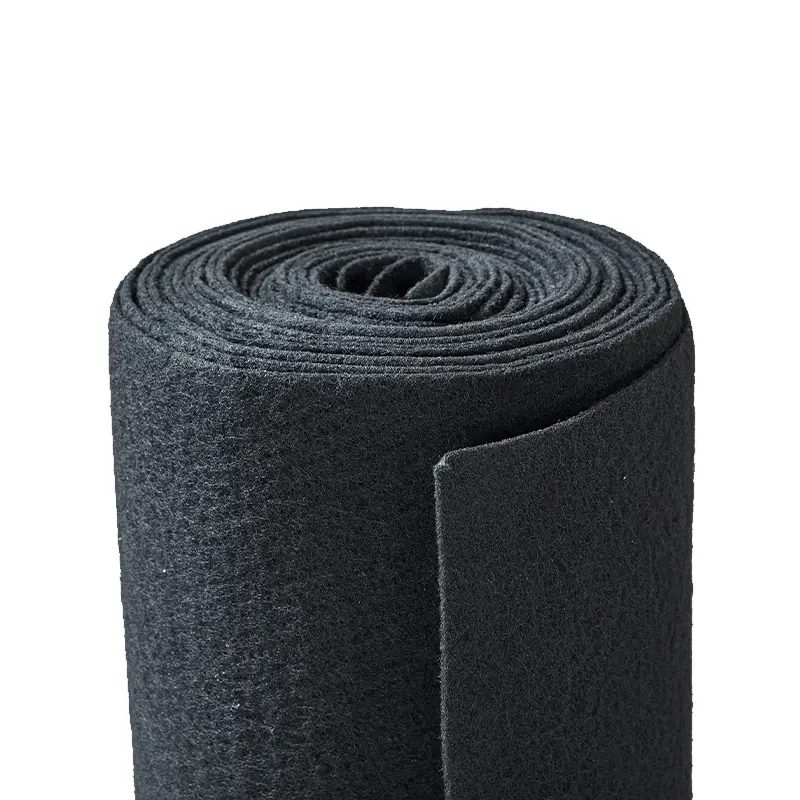

Product Display

Frequently Asked Questions

What materials are used in this activated carbon filter media?

The media is constructed from a combination of high-quality polyester and catalytic powdered activated carbon for superior filtration.

What types of gases can this filter effectively remove?

It is specially designed to eliminate harmful gases such as Benzene, Methanol, Ammonia, Carbon Dioxide, Nitrogen Dioxide, and Sulfur Dioxide.

Is the filter media available in custom sizes?

Yes, while normal sizes include 1*20m and 2*20m, we offer customization options for shapes and sizes to meet specific application requirements.

What is the maximum temperature the filter can withstand?

The filter media has a temperature resistance of up to 100°C, making it suitable for various HVAC environments.

What filtration classes are available?

Depending on the model (thickness and weight), the filtration classes range from G2 to G4 according to EN779 standards.

Where can this activated carbon media be applied?

It is versatile and suitable for air conditioner purifiers, panel filters, bag filters, and various HVAC systems in residential or industrial environments.
