Cheap H14 Deep Pleated HEPA Filter Exporter, Pricelist

The deep pleated high efficiency air filter is designed for the final filtration stage of various ventilation equipment, dust removal systems and air supply systems with high cleanliness requirements. Its advanced design ensures effective filtration of particles in the air, making it very suitable for applications with strict air quality requirements.

Send Inquiry

Product Description

Main Features

Large filtration areaDeep pleat design provides larger filter area, resulting in higher dust holding capacity and longer service life.

High filtration efficiencyCapable of capturing a wide range of airborne particles, including fine dust, allergens and other pollutants.

Low resistanceDesigned to maintain low airflow resistance, improving energy efficiency and reducing operating costs.

Even pleat spacingEnsures consistent airflow and filtration efficiency across the entire filter surface.

Stable airflowDesigned to maintain steady airflow, essential for the efficient operation of ventilation systems.

Excellent air tightnessProvides good air tightness, minimizing air leakage and improving overall effectiveness.

High temperature resistanceWithstands temperatures up to 80°C, ensuring reliable performance in various applications.

Moisture resistanceOperates effectively in environments with relative humidity up to 100% RH using aluminum foil isolation.

Applications

Ventilation Equipment: Ideal for use in HVAC systems where high cleanliness levels are required.

Dust Removal Equipment: Effectively captures fine dust particles in industrial environments.

Air Supply Systems: For applications requiring clean air, such as laboratories, clean rooms and medical facilities.

An essential component for maintaining high air quality standards in environments where cleanliness is critical, this deep-pleated HEPA filter provides reliable filtration.

Specifications

Model	Outside Size (WHD mm)	Rated Air Flow (m³/h)	I.N.P (Pa)	Efficiency	Material
Model	Outside Size (WHD mm)	Rated Air Flow (m³/h)	I.N.P (Pa)	Efficiency	Frame	Filter Media	Partition	Sealant
LY-D-H	320320220	400	≤200pa	≥99.99% @0.3μm	Aluminum alloy / Galvanized / Stainless sheet	Fiberglass filter paper	Aluminum foil / Veneer paper	Polyurethane rubber
LY-D-H	484484220	1000
LY-D-H	610610150	1000
LY-D-H	820600150	1200
LY-D-H	630630220	1500
LY-D-H	968484220	2000
LY-D-H	945630220	2200
LY-D-H	1260630220	3000
Note: Special Size Available Upon Request.

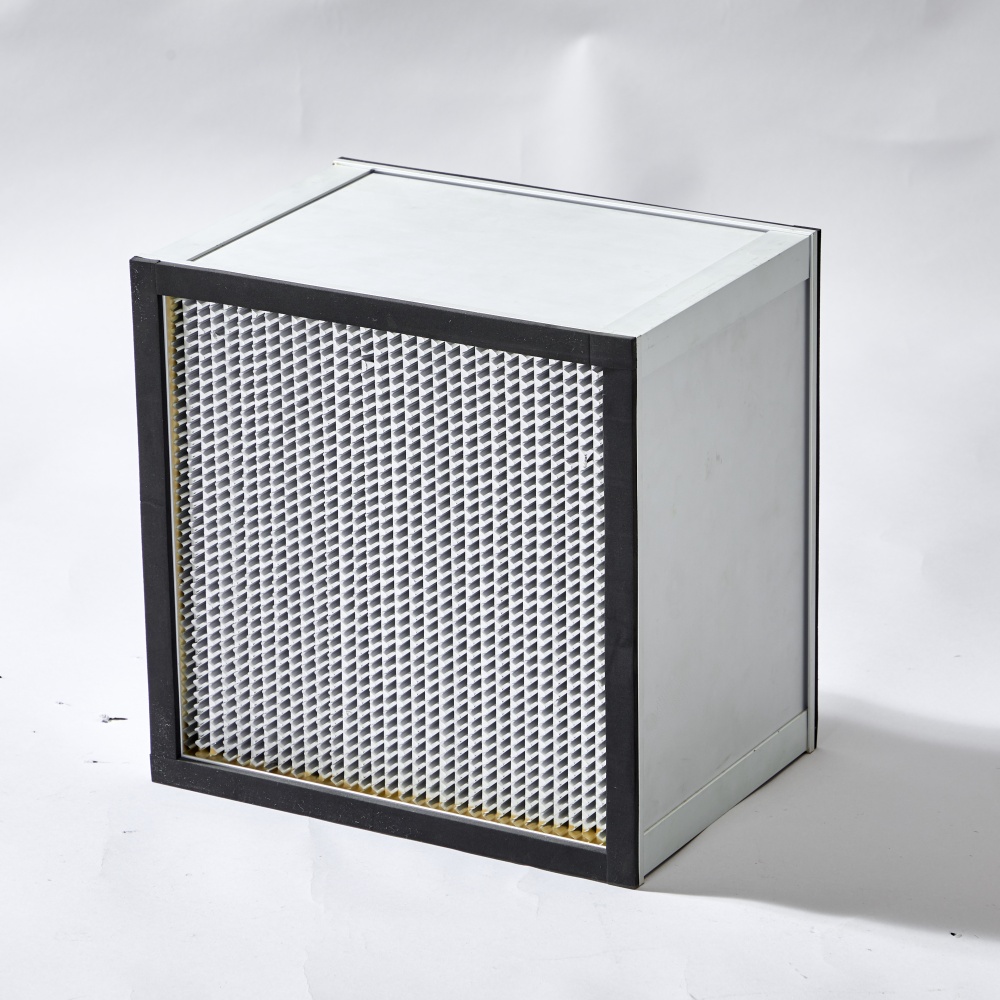

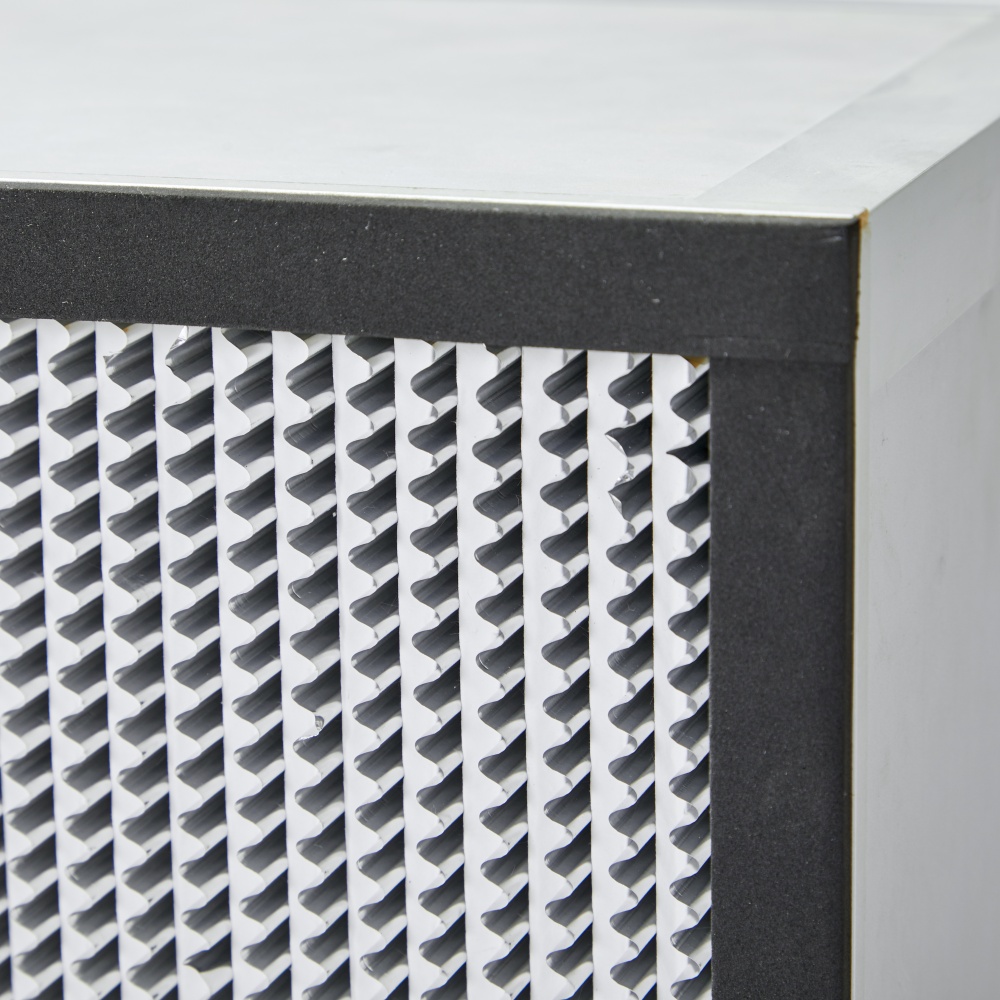

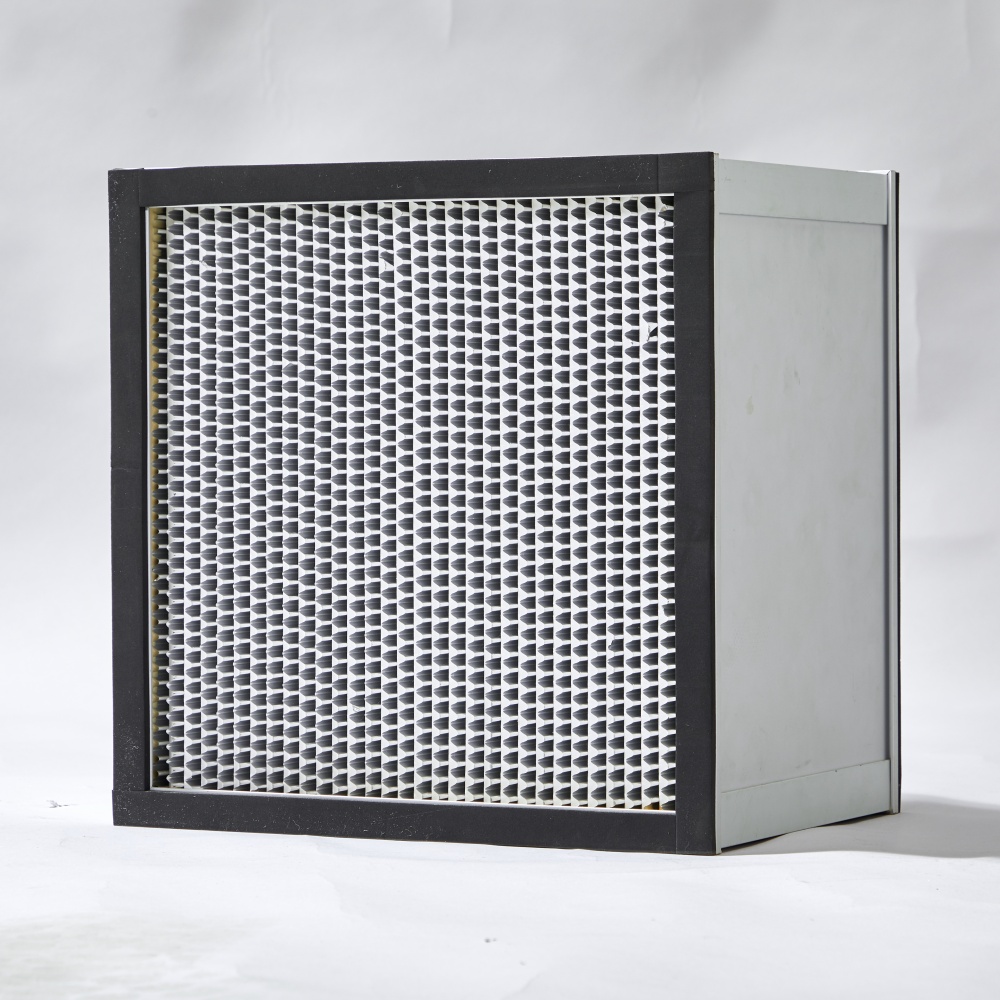

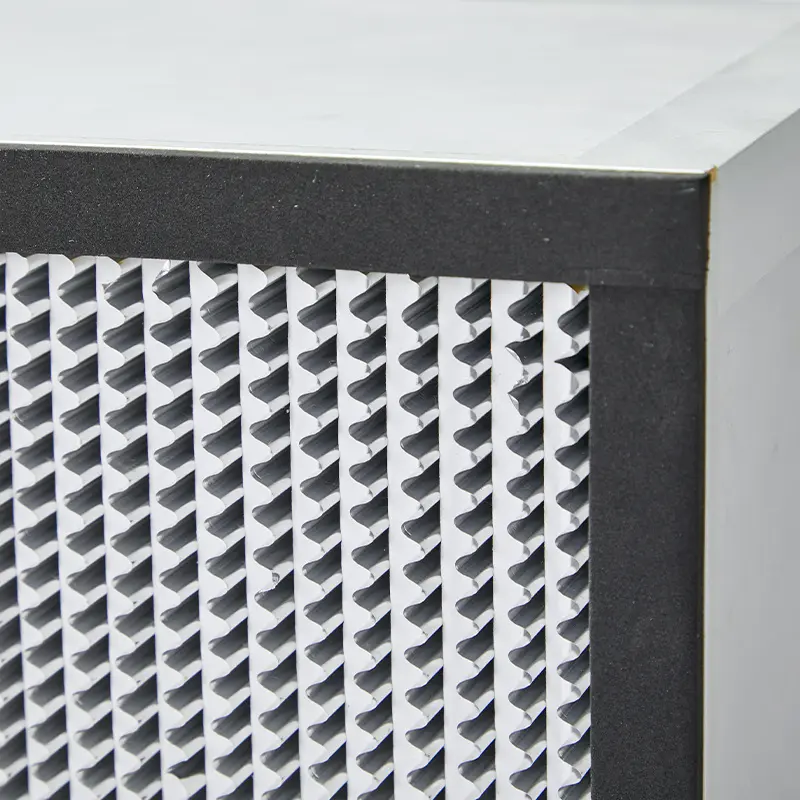

Product Display

Frequently Asked Questions

What is the advantage of a deep-pleated design?

The deep-pleated design significantly increases the surface area of the filter media, allowing for higher dust holding capacity and a longer service life compared to standard filters.

Can this HEPA filter handle high humidity?

Yes, it is designed with moisture-resistant aluminum foil separators, allowing it to operate reliably in environments with up to 100% relative humidity.

What is the filtration efficiency rating?

The filter provides an efficiency of ≥99.99% for particles as small as 0.3μm, ensuring ultra-clean air output.

What are the frame material options?

The frames can be constructed from high-quality Aluminum alloy, Galvanized sheet, or Stainless steel depending on your specific environmental requirements.

Is custom sizing available?

Yes, while we offer standard dimensions, special sizes can be manufactured upon request to fit your specific ventilation equipment.

What is the maximum operating temperature?

The filter is built to withstand temperatures up to 80°C, making it suitable for a wide range of industrial air supply systems.
