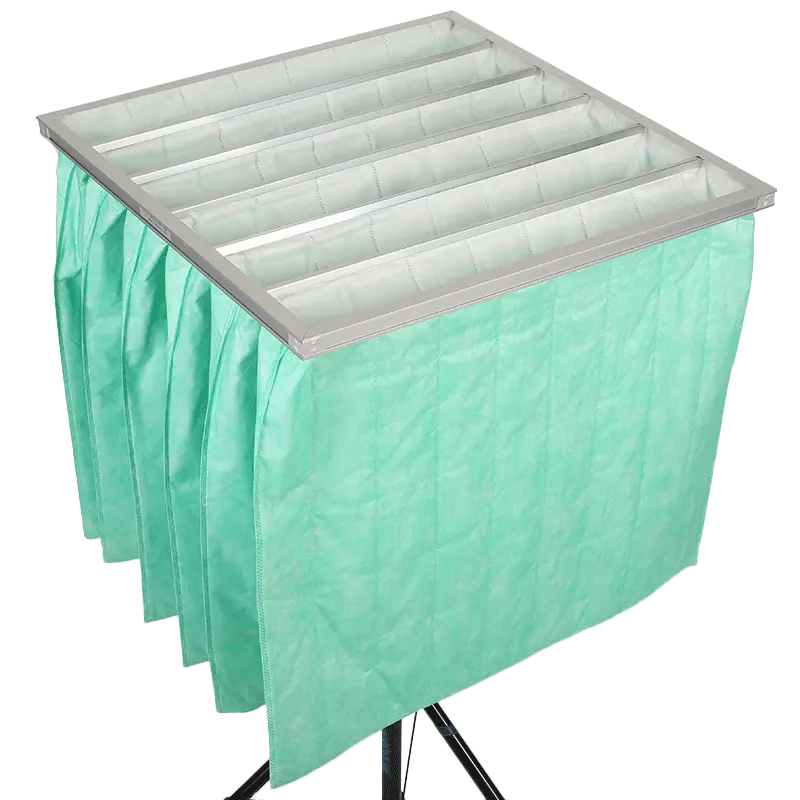

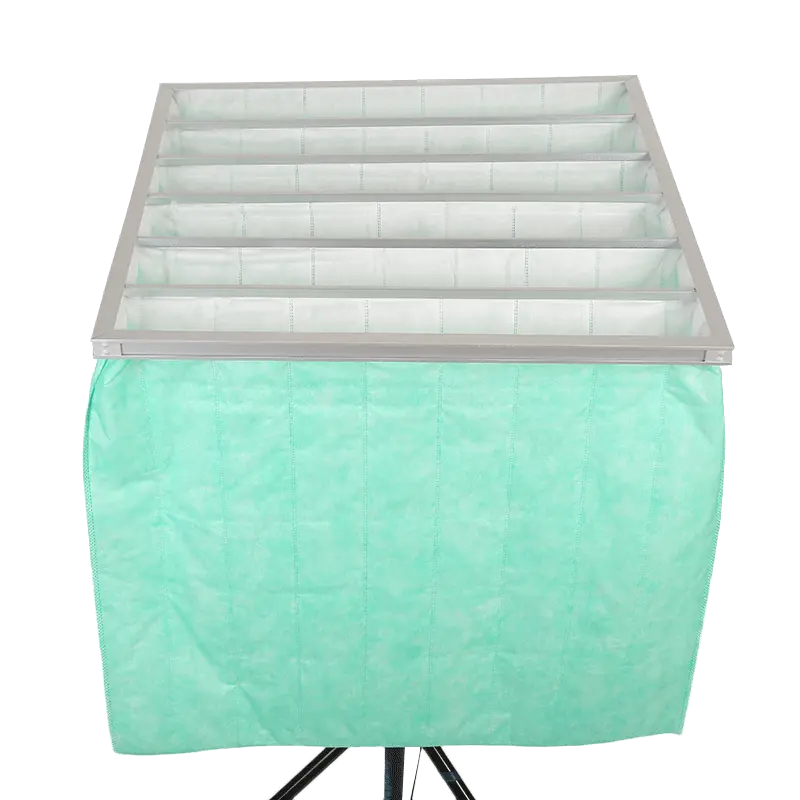

Custom F6 M6 Bag Filter Manufacturer, Product

Send Inquiry

Product Description

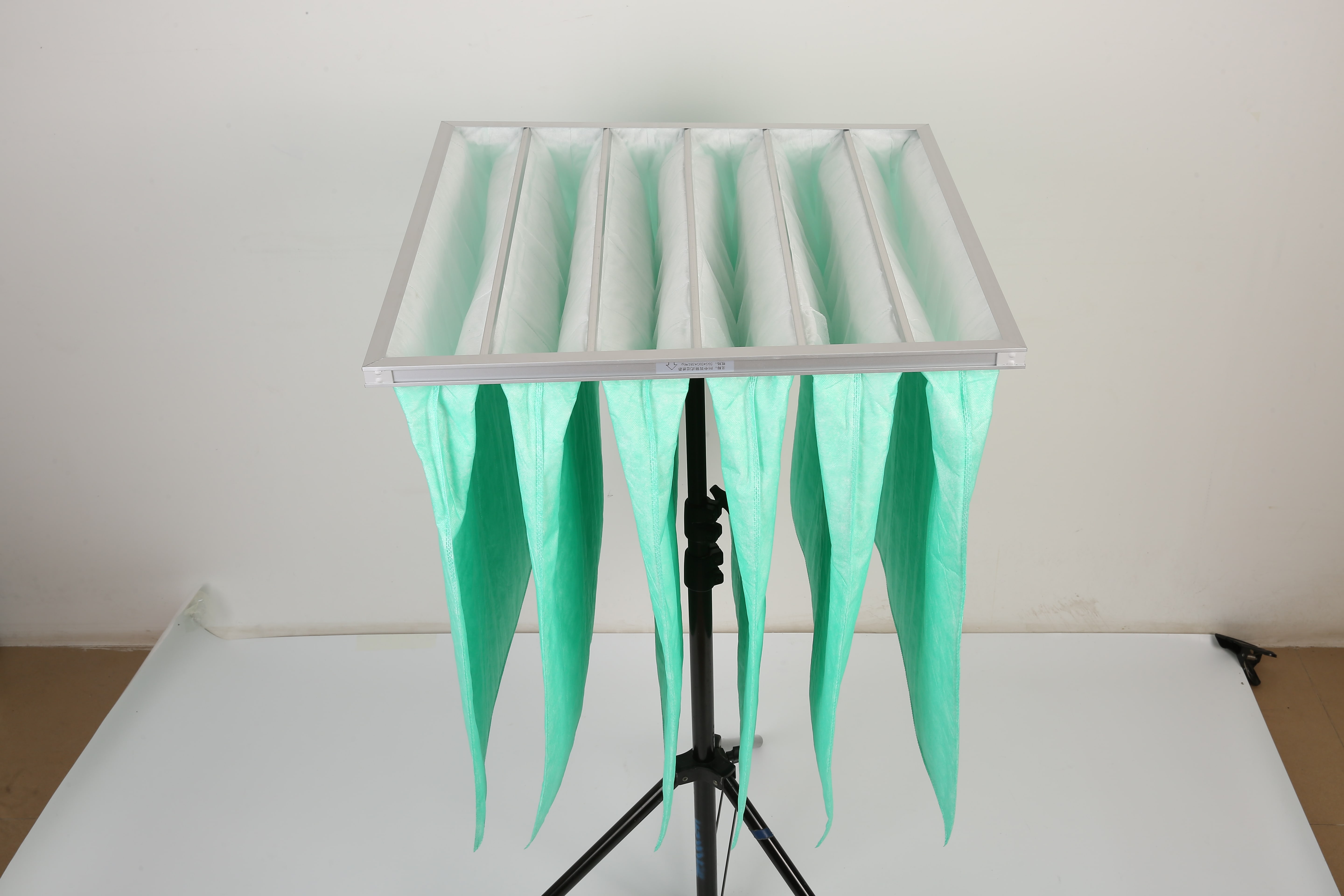

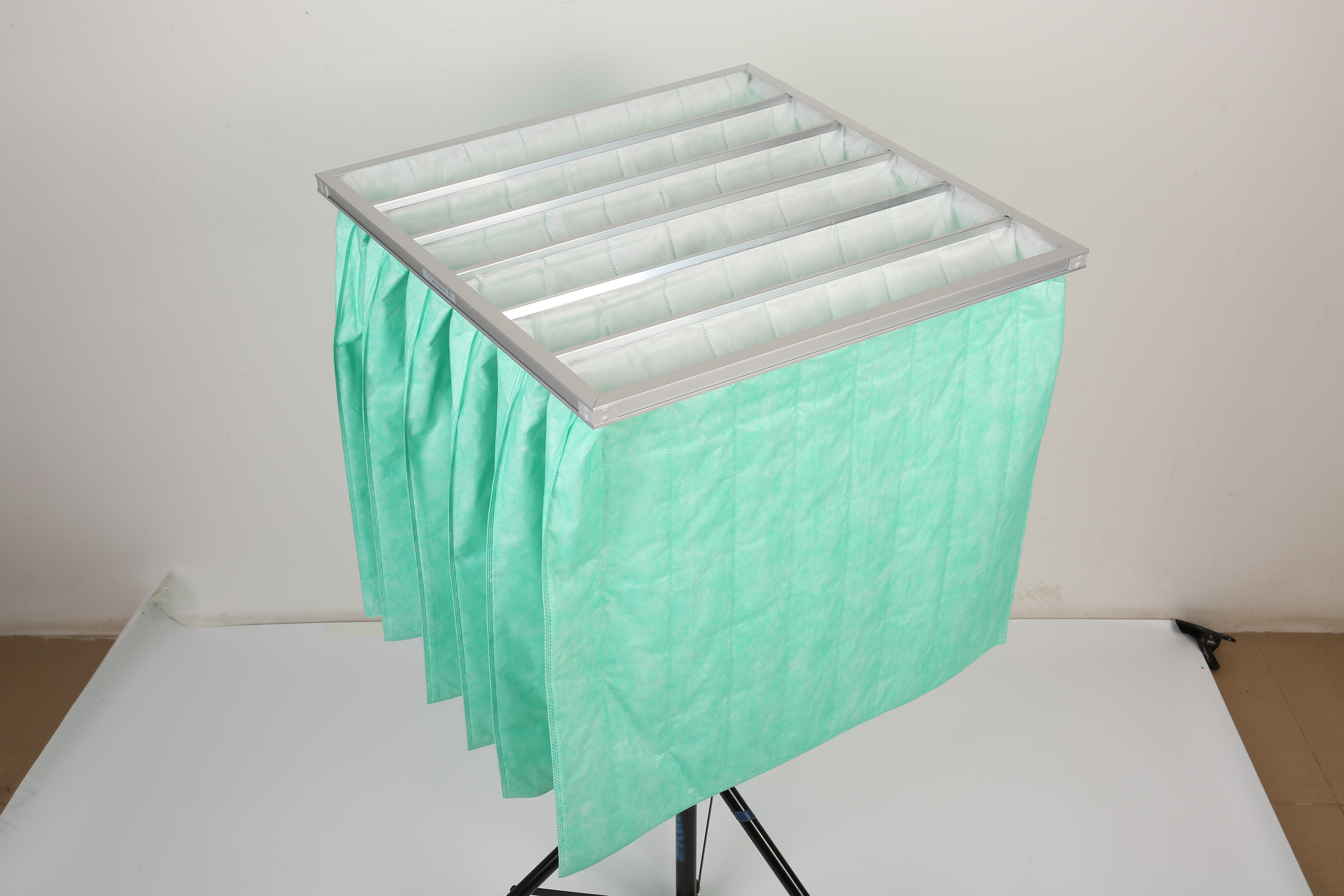

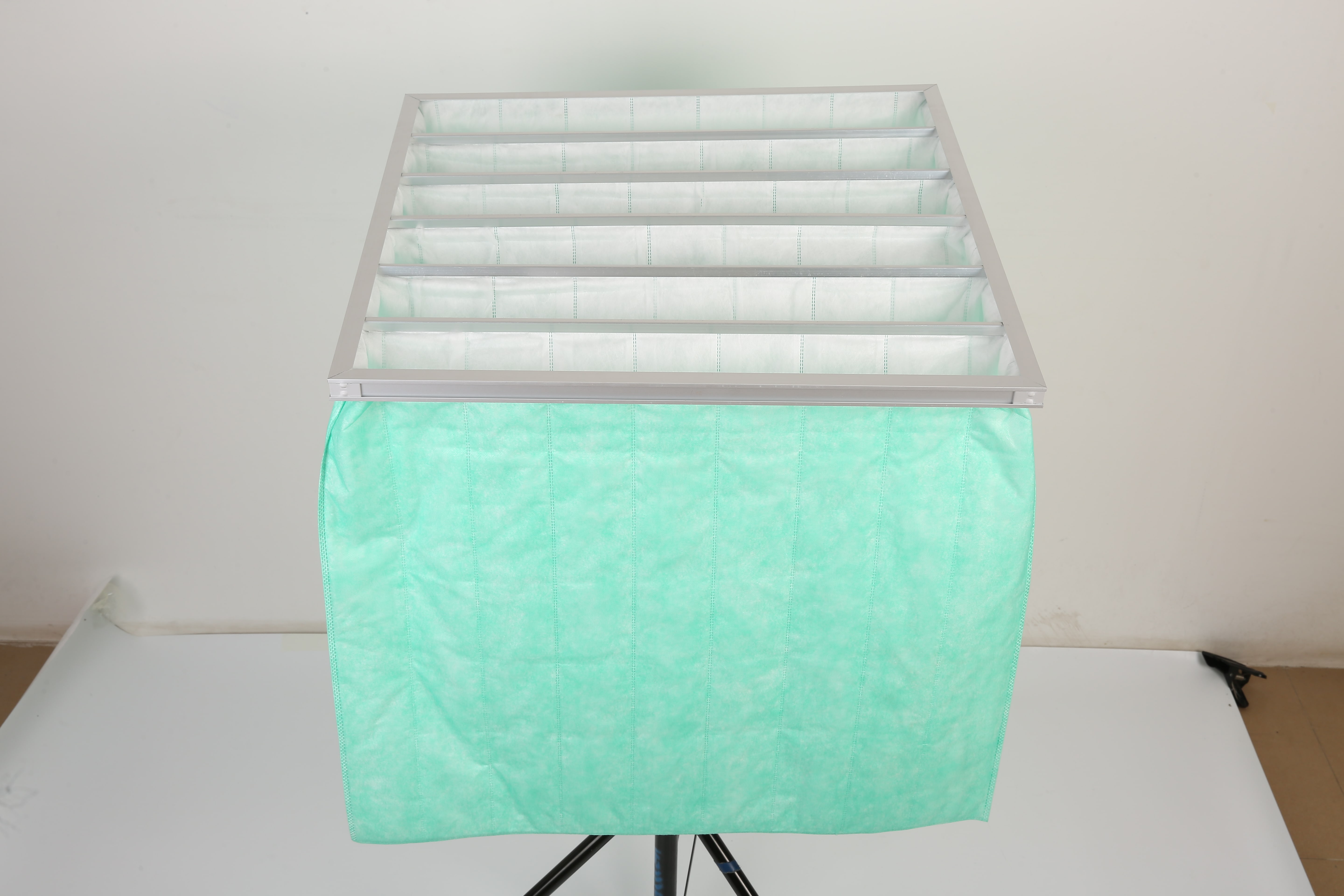

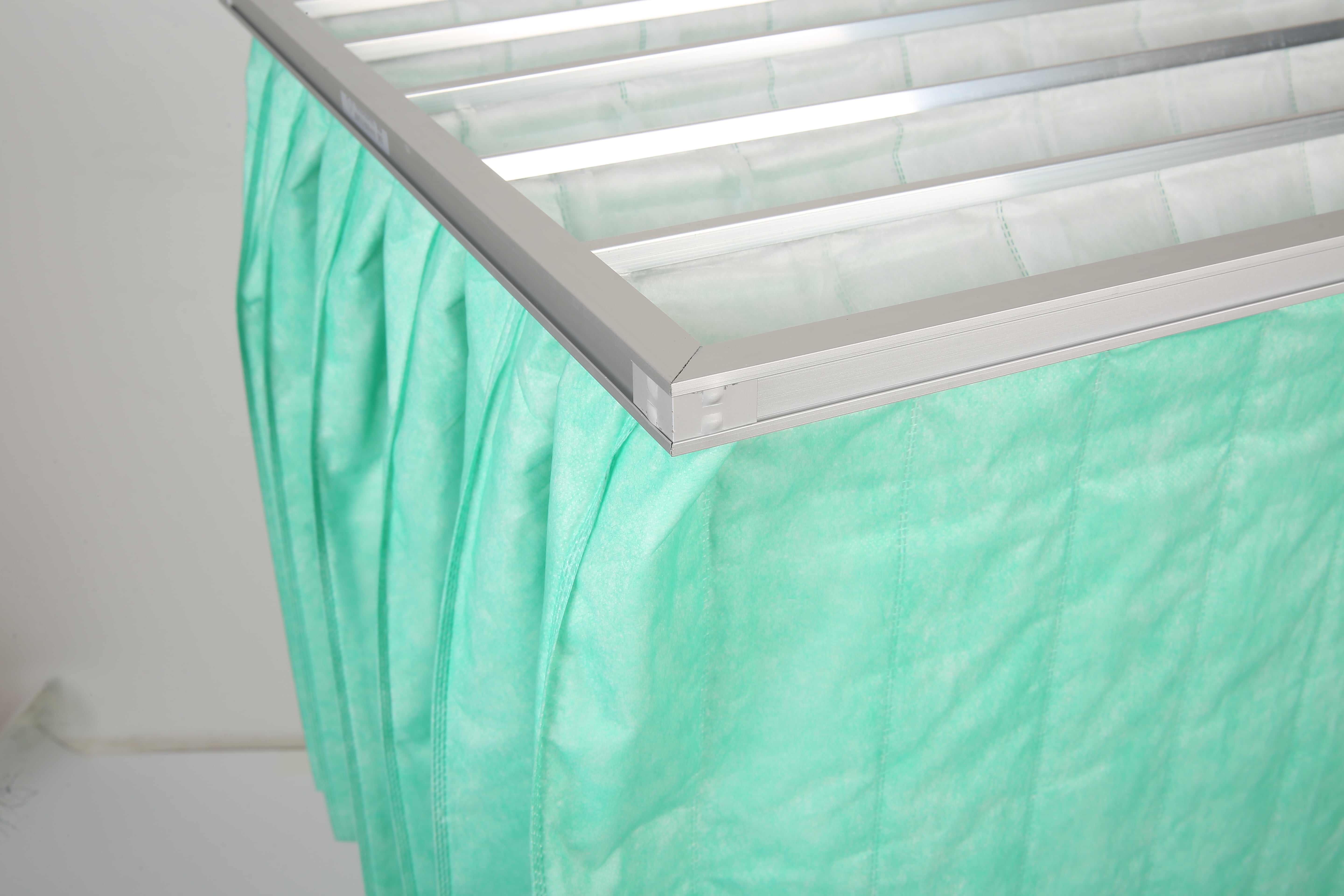

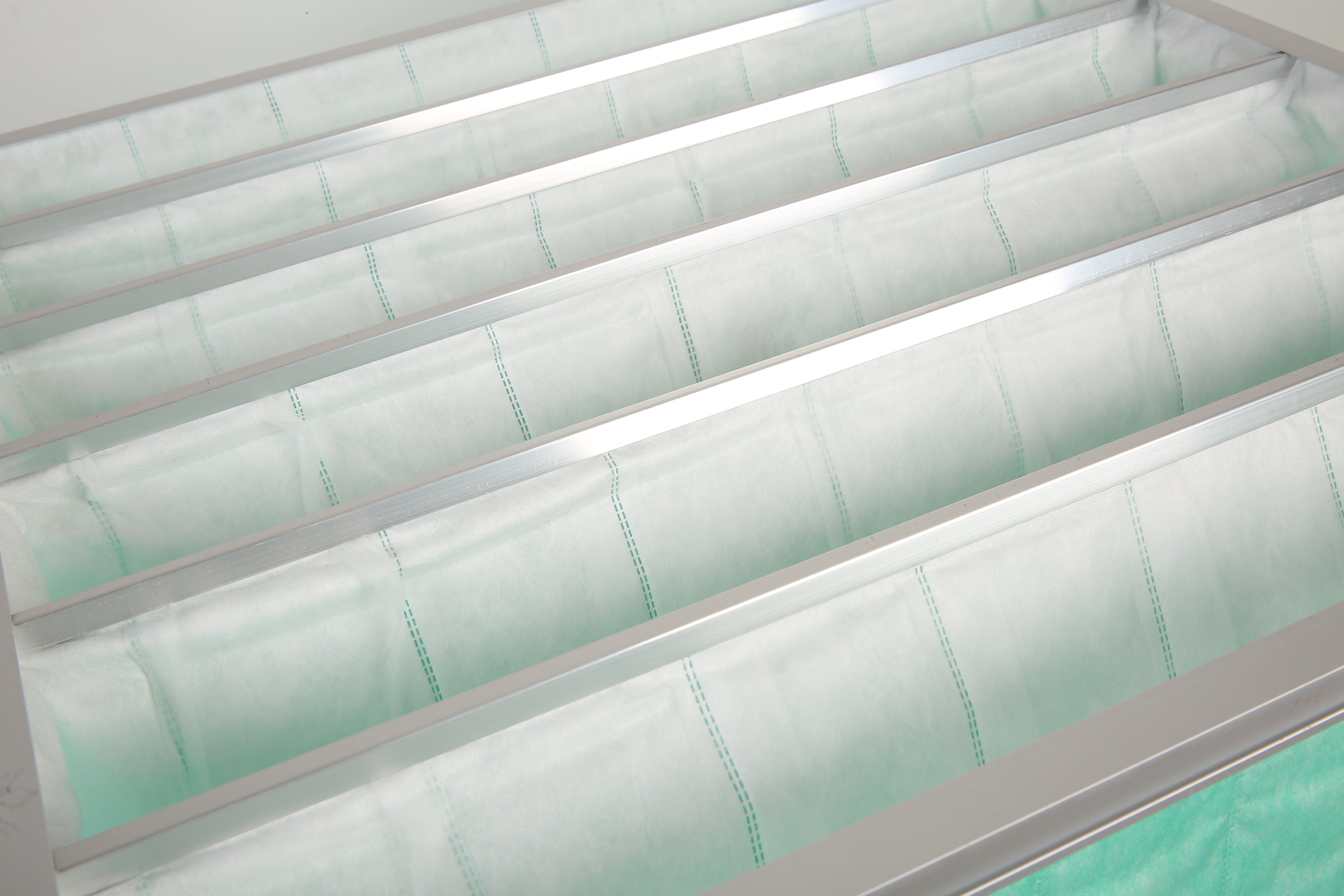

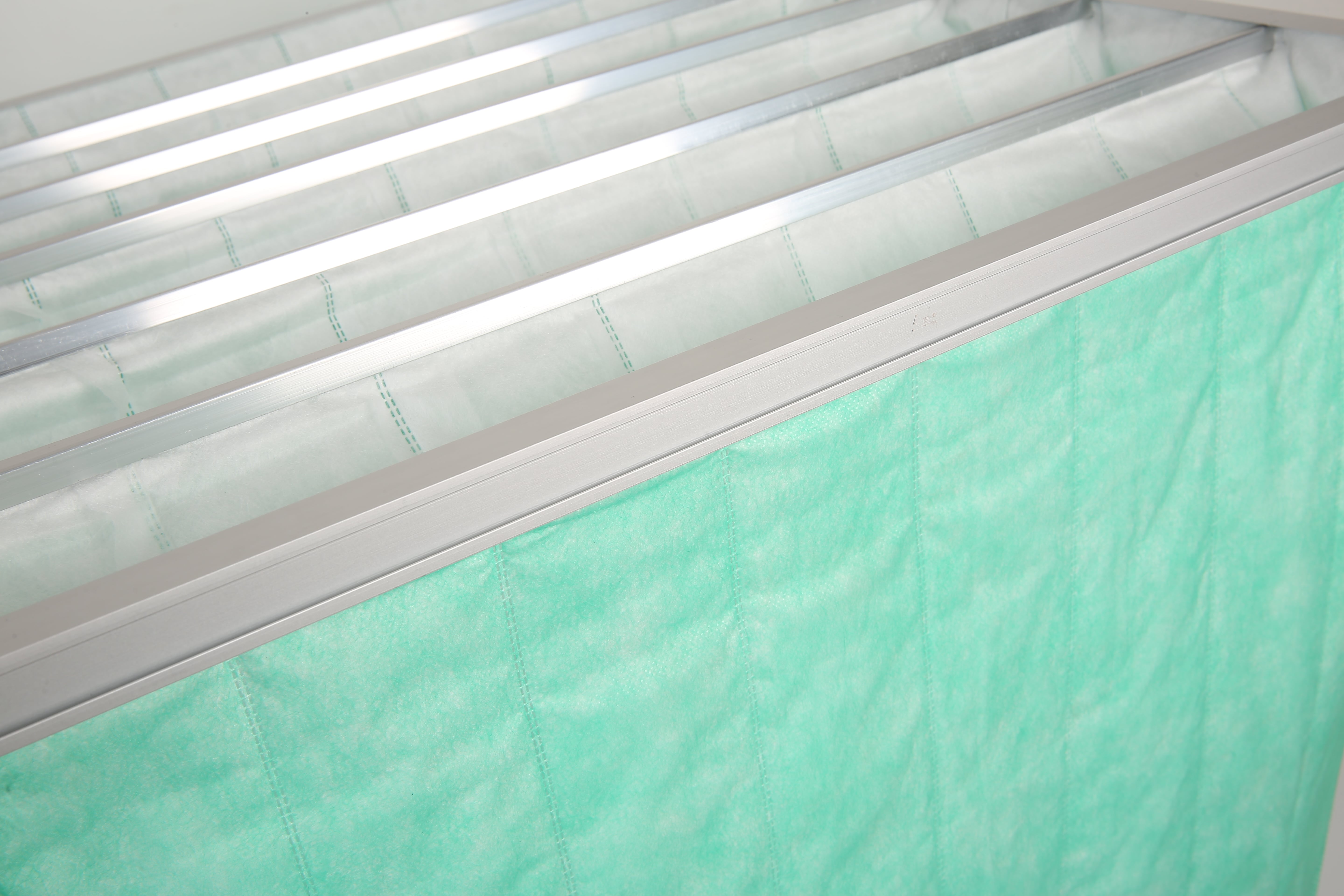

What is Synthetic Pocket Filter?

The filter material is made of high-performance non-woven fabric by the thermal melting process, to avoid the discomfort caused to the human body by old-fashioned glass fiber materials. The filter material contains electrostatic fiber, which has an excellent filtering effect on sub-micron dust.

Key Features

Extra long service life
High burst resistance
Large surface area
Fits all commonly used filter frames
High efficiencies at low pressure drops
Uniform identification is used for appearance color, which is easy to identify

Typical Applications

The pocket filter is suitable for intermediate filtration in an air conditioning system. It is located in front of the HEPA filter.

It is mainly used to filter 1-5 μm of dust particles to protect the lower filters in the system and the system itself. It has the advantages of small resistance and a large volume of air. Optional style has bag type, frame type, and combination type.

Dimensions & Technical Details

Bag (pcs)	Size (mm)	Rated Airflow (m³/h)	Filter Object (μm)	Initial Resistance(Pa)
Bag (pcs)	Size (mm)	Rated Airflow (m³/h)	Filter Object (μm)	M5	M6	F7	F8	F9
8	592×592×600	2200/3400	≥0.4	<35/45	<45/65	<55/80	<65/100	<65/110
6	592×592×600	2200/3400	≥0.4	<40/50	<55/75	<60/85	<65/110	<70/120
5	492×592×600	2000/3000	≥0.4
4	287×592×600	1100/1700	≥0.4

Note: Other specifications can be customized according to requirements.

Synthetic Bag Filter Technical Specification

Filter Type	Pocket Filter
Filter Class (EN 779)	M5
Filter Media & Separator	Non-woven Fabric
Filter Frame	Aluminum/Galvanized/Plastic
Temperature Resistance	80°C
Max. Temperature	100°C
Relative Humidity	100%
Rec. Final Pressure Drop	400 - 450 Pa.

Replacement Cycle & Maintenance

Under the rated air volume, it needs to be replaced in 3 - 6 months.
Resistance of 450Pa or more must be replaced.
If it is washable filter material, it can be washed with clean water or neutral detergent solution to dry and then used, washed up to two times, and then replaced.
The dust concentration in the environment is large, and the service life will be shortened.

Frequently Asked Questions

Q1: What are the main benefits of using non-woven fabric over glass fiber? A1: Non-woven fabric is made via a thermal melting process which avoids the irritation and discomfort caused to the human body by traditional glass fiber materials. It also incorporates electrostatic fibers for better sub-micron dust filtration.

Q2: Can these synthetic bag filters be reused after washing? A2: Yes, if the filter material is designated as washable, it can be cleaned with water or neutral detergent up to two times. However, for maximum efficiency, replacement is recommended after two washes.

Q3: When exactly should I replace my pocket filter? A3: The filter should be replaced every 3 to 6 months under normal conditions, or immediately if the resistance reaches 450Pa or higher. High-dust environments will significantly shorten this lifespan.

Q4: What frames are compatible with these filters? A4: Our synthetic pocket filters are designed to fit all commonly used filter frames, including aluminum, galvanized steel, and plastic frames.

Q5: What is the primary role of a pocket filter in an HVAC system? A5: It serves as intermediate filtration, typically placed in front of HEPA filters to capture particles between 1-5 μm, thereby extending the life of high-efficiency filters and protecting the system.

Q6: What is the maximum temperature these filters can withstand? A6: These filters have a standard temperature resistance of 80°C and can withstand maximum peak temperatures of up to 100°C.
